1. Usage Notes

1.1 HTTP URL Concatenation Rules

App-level APIs are currently supported. Within an app (cross-app calls are also supported), you can access the corresponding API using the following format:

${YiDA Domain}/dingtalk/web/${App code} + API path.

For example, to call the “workflow instance – Start workflow” service API from the browser for the app with code APP_X1X2X3X4, the request URL used in the data panel is (a relative path is sufficient):

/dingtalk/web/APP_X1X2X3X4/v1/process/startInstance.json

For a detailed hands-on demo, see [II. workflow instance] → [1. Start workflow]. Note: In the current version, the searchFieldJson and dynamicOrder fields require a string value. For example:

const someJson = {
	"textField_kkm9o5cd":"123"
}

// Passing someJson directly to searchFieldJson has no effect. Use JSON.stringify to convert the object to a string.
const fieldJson = JSON.stringify(someJson); // '{"textField_kkm9o5cd":"123"}'

2. Workflow Instance

2.1 Start Workflow

API: /v1/process/startInstance.json
HTTP method: POST
Parameters

Parameter	Description	Required	Example	Alias
processCode	workflow code	Yes	TPROC—EF6Y4G8WO2FN0SUB43TDQ3CGC3FMFQ1G9400RCJ4	Available in the standalone start page URL
formUuid	Form ID	Yes	FORM-EF6Y4G8WO2FN0SUB43TDQ3CGC3FMFQ1G9400RCJ3	Available in the standalone start page URL
formDataJson	Form data	Yes		Type: String Reference: Appendix 1 – Save/Update Form data format
deptId	Department ID of the submitter	No	18295	If omitted, defaults to the submitter’s primary department

Return value:
Return value

{
  "result": "f30233fb-72e1-4af4-8cb8-c7e0ea9ee530",
  "success": true
}

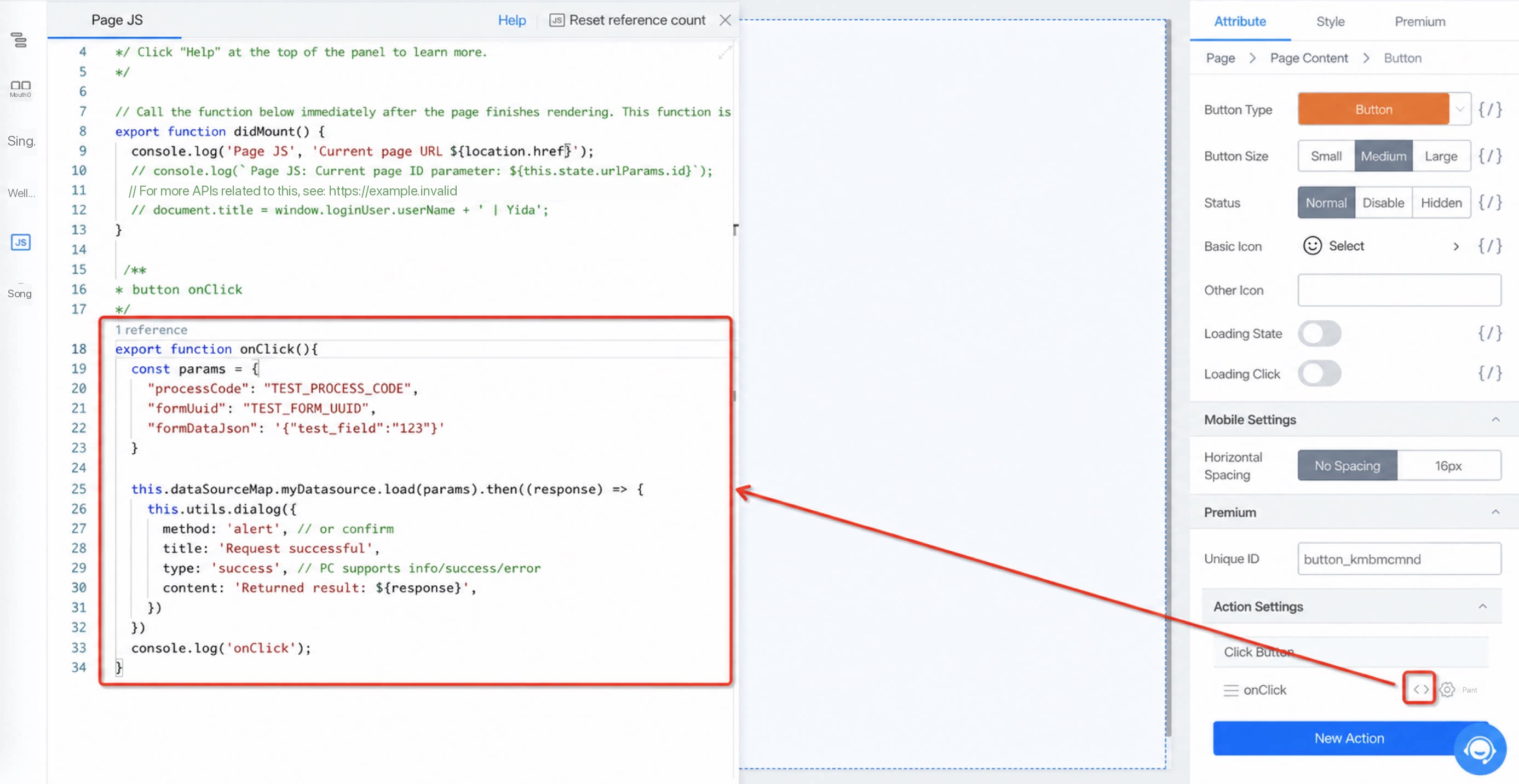

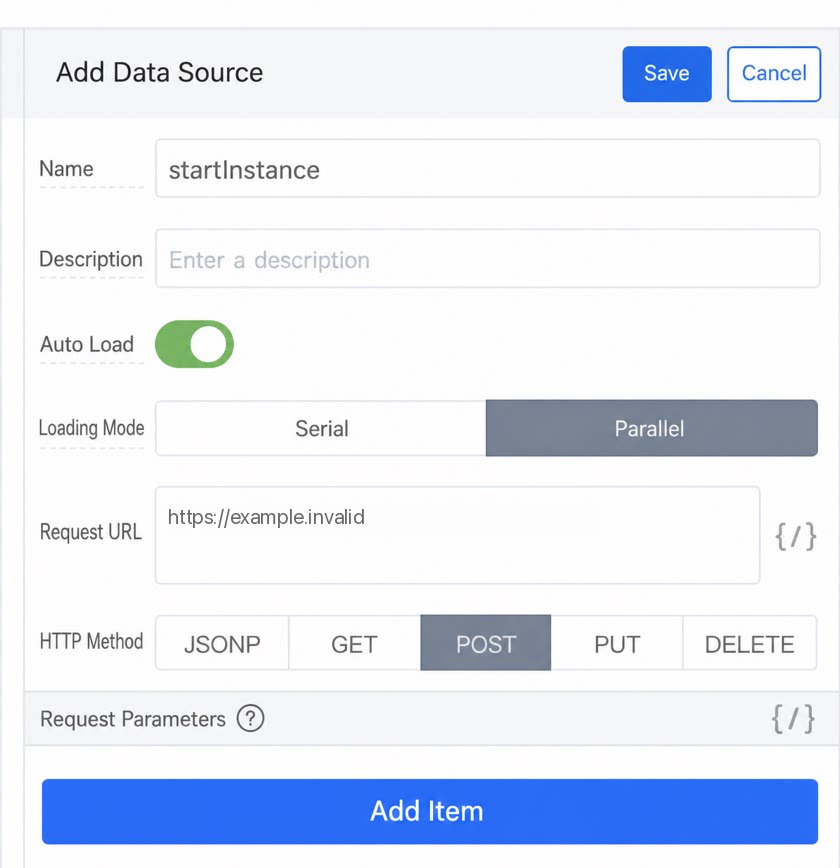

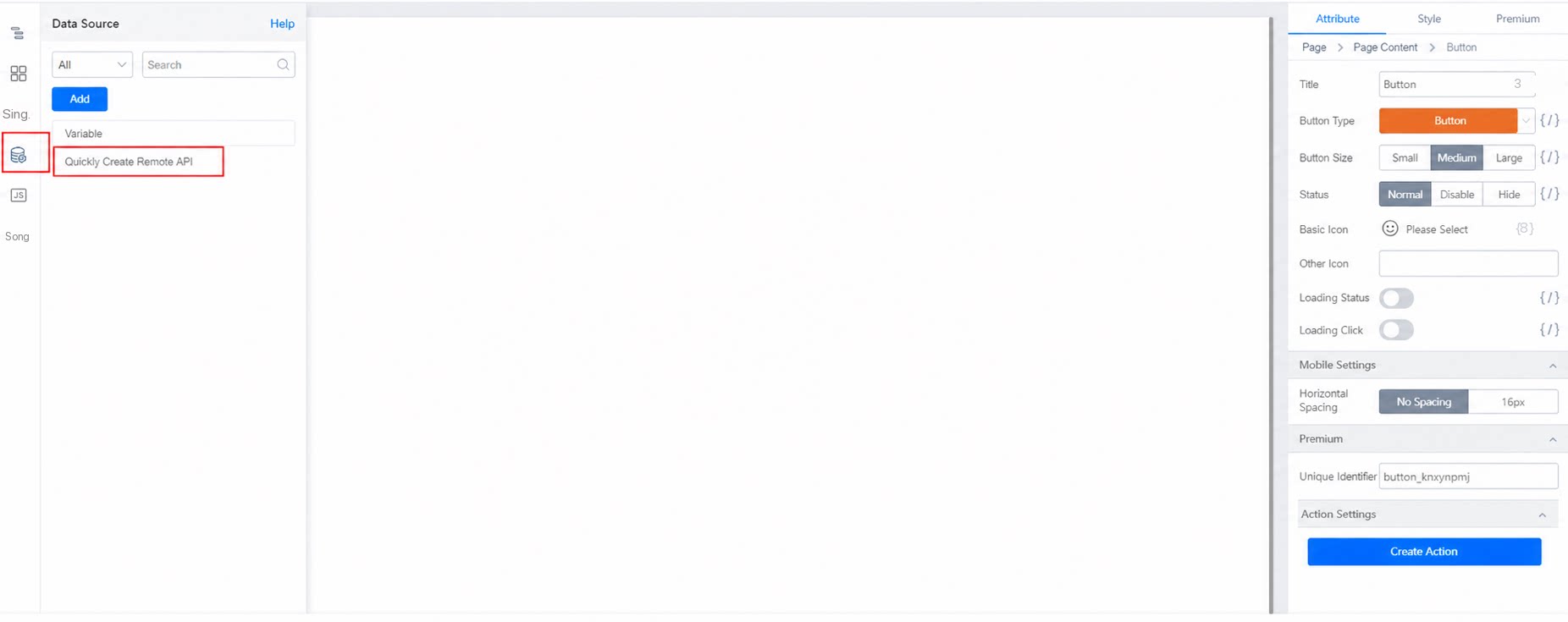

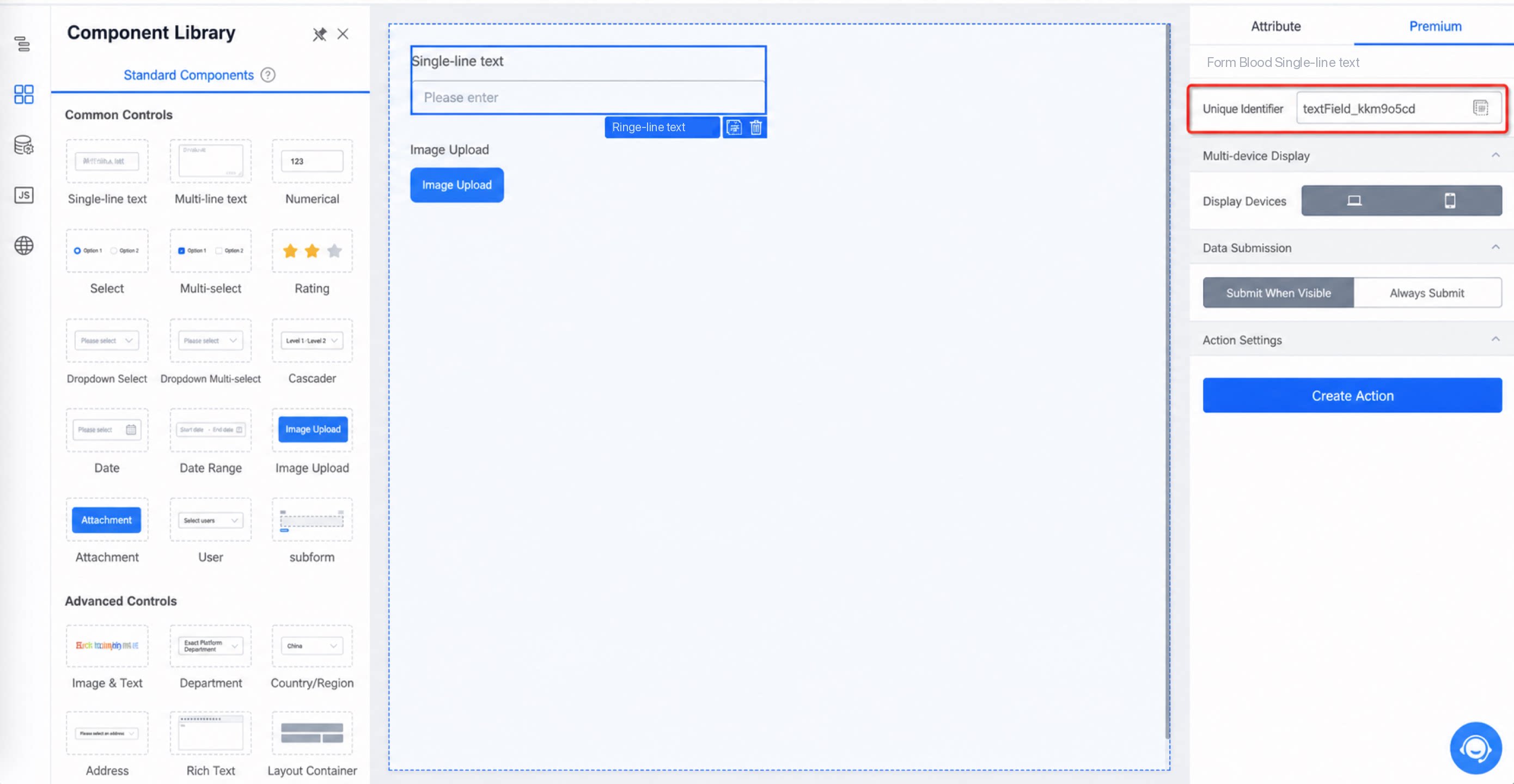

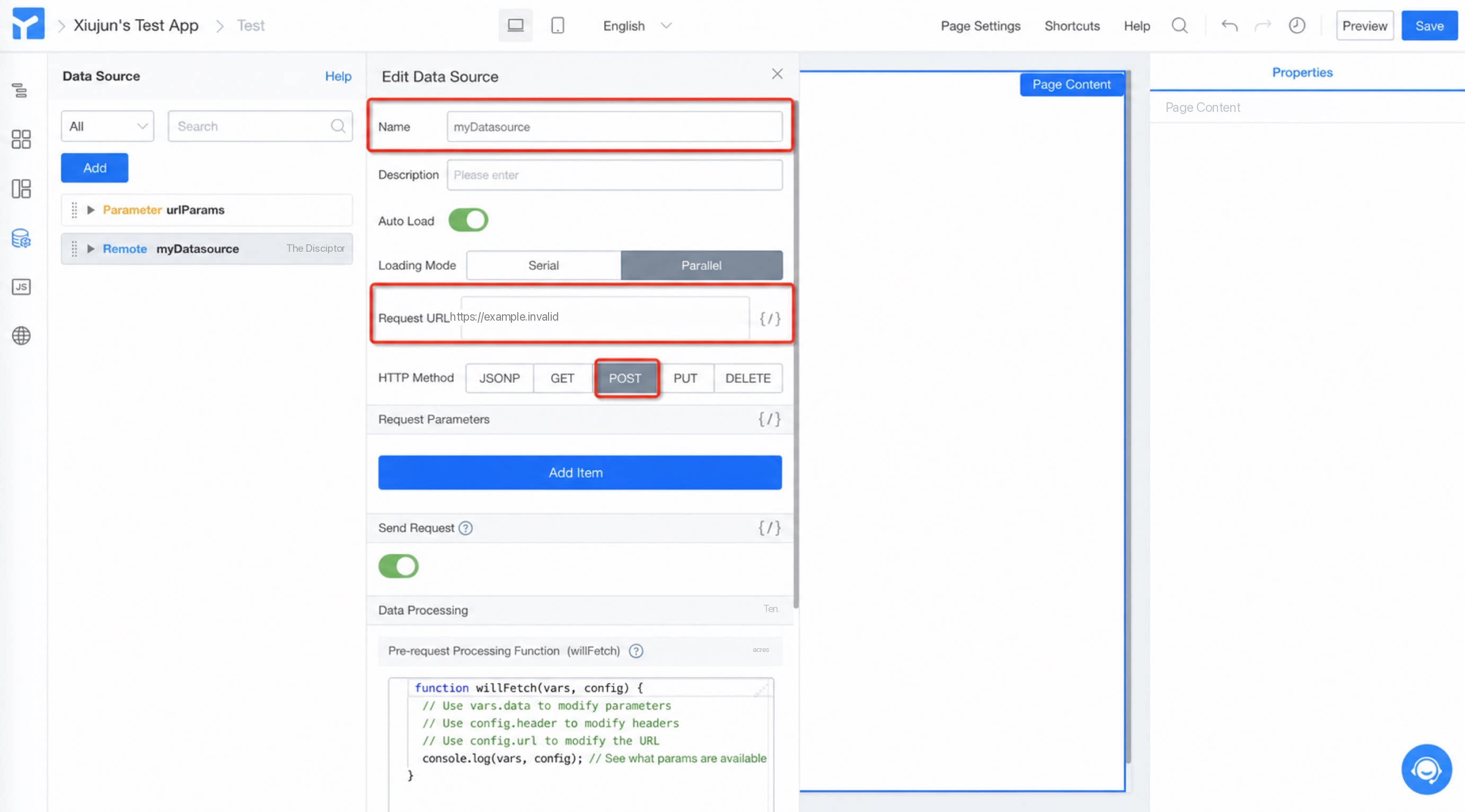

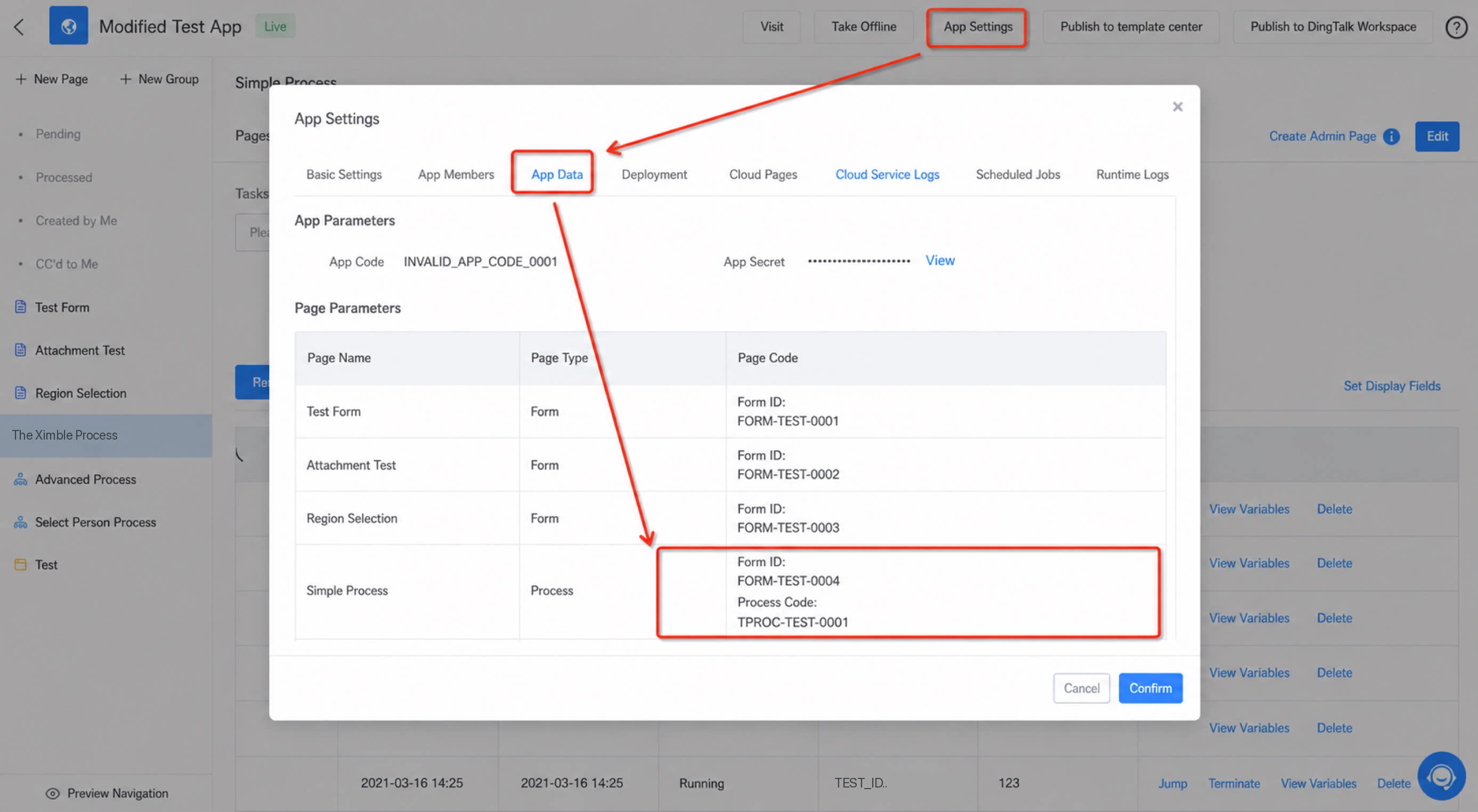

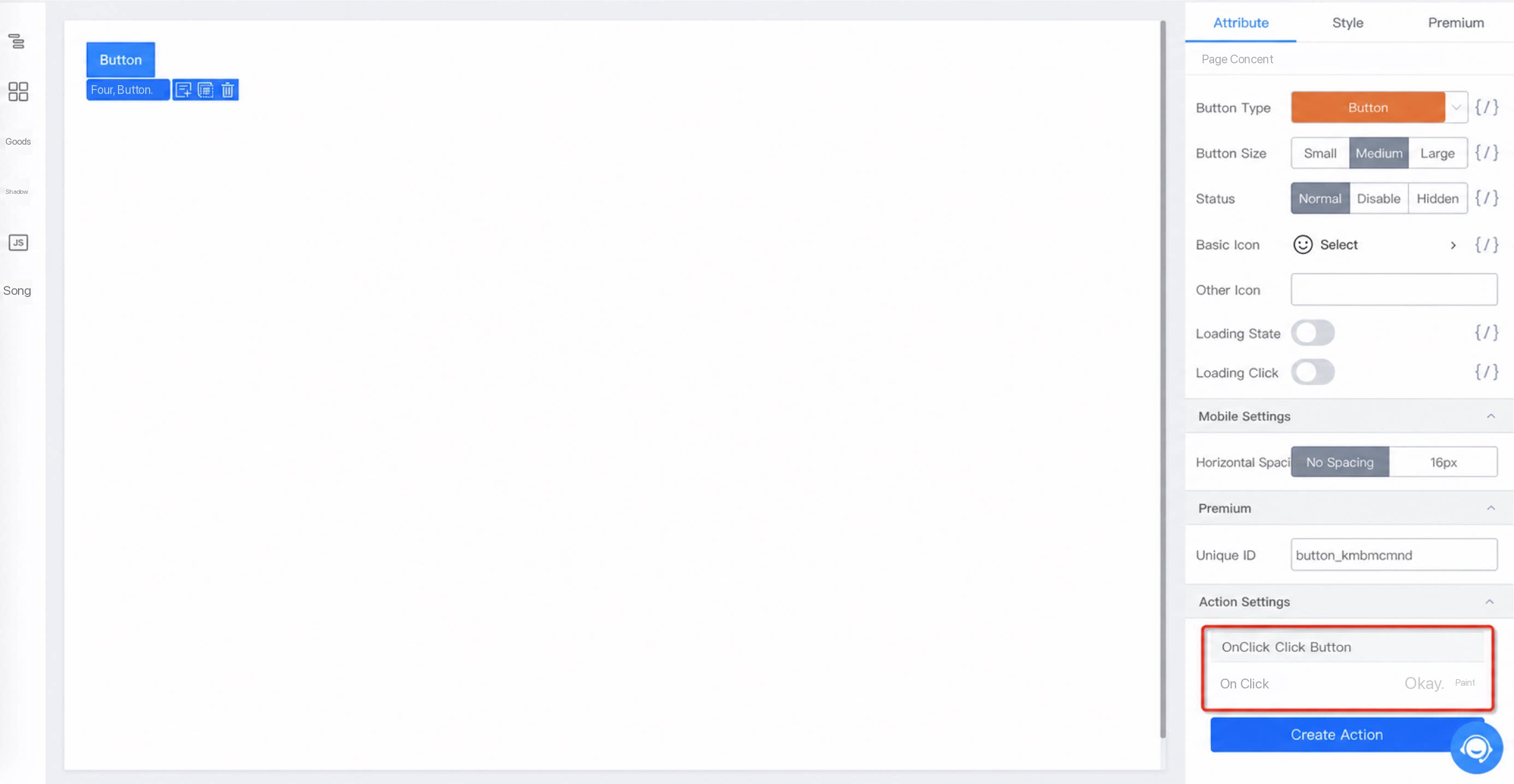

Scenario walkthrough: ①. Build a simple workflow Page, click a Component whose value you want to fill in with a Custom value, and copy its unique identifier. In this example, the unique identifier of the Single-line text Text Box is textField_kkm9o5cd. ②. Create a Premium display Page, drag a Button onto the Page, and Add a Data Source. Enter an easy-to-understand Name that is unique on this Page, and enter the request URL based on your business needs. In this example, we want clicking the Button to start a workflow, so the request URL is: /alibaba/web/APP_D45S78OXJSL51QTQVHT8/v1/process/startInstance.json, where APP_D45S78OXJSL51QTQVHT8 is the unique app identifier — replace it with the unique identifier of your own app. Make sure to select POST as the HTTP method. ③. Add an onClick event to the Button and click the <> icon to bind the remote Data Source to the Button: Reference: https://developers.aliwork.com/docs/api/about Write the binding code below. Note that we are entering a fixed value 123 for the Single-line text Form control (unique identifier: textField_kkm9o5cd). You can find the formUuid and processCode parameters under [App Settings] – [App Data] – [XX workflow] as the Form ID and workflow Code.

export function onClick(){
  const params = {
    "processCode":"TPROC--CFYJ5HYUN89NJ1JW3IXBI7A95RXM3652O9MKK3",
    "formUuid": "FORM-CFYJ5HYUN89NJ1JW3IXBI7A95RXM3552O9MKK2",
    "formDataJson": '{"textField_kkm9o5cd":"123"}'
  }

  this.dataSourceMap.myDatasource.load(params).then((response) => {
    this.utils.dialog({
      method: 'alert', // or confirm
      title: 'Request succeeded',
      type: 'success', // On PC, info/success/error are supported
      content: `Response: ${response}`,
    })
  })
  console.log('onClick');
}

④. After you finish the code, click the Save Button in the top-right corner of the Page. ⑤. Go to the runtime Page to test starting the workflow. Click the Button, and in the browser’s built-in Debug tool under Network you will see that the startInstance request succeeded. The response da5ed25c-977b-40e0-acff-4a1c07aa6f41 is the workflow instance ID, which uniquely identifies this workflow instance. ⑥. Next, open the data management page of the corresponding workflow. You will find the workflow you just started, and the Content of the Single-line text is exactly the fixed value 123 that we entered in the code. Testing and verification are now Complete.

Video walkthrough

2.2 Search Workflow Instance IDs by Conditions

API: /v1/process/getInstanceIds.json
HTTP method: GET
Permissions: the workflow must have instance View Permission configured (Admins are exempt)
Parameters

Parameter	Description	Required	Example	Alias
formUuid	Form ID	Yes	FORM-EF6Y4G8WO2FN0SUB43TDQ3CGC3FMFQ1G9400RCJ3
searchFieldJson	Query by in-Form Component values	No		Type: String See Appendix 2: Condition Search by Component value – Component value format
taskId	Task ID	No	2199132092	Rarely needed.
instanceStatus	Instance status	No	RUNNING	Enum values: RUNNING, TERMINATED, COMPLETED, ERROR. Meaning: Running, Terminated, Completed, error, respectively.
approvedResult	workflow Approval result	No	agree	Enum values: agree, disagree. Meaning: Accept, Decline, respectively.
currentPage	Current page	No	1	Must be greater than 0 Default: 1
pageSize	Records per page	No	10	Must be greater than 0 Default: 10 Cannot exceed 100
originatorId	Query by the Employee ID of the workflow submitter	No
createFrom	createFrom and createTo together form a time range. Query the Data List created within this range.	No	2018-01-01	string, in yyyy-MM-DD format yyyy-MM-DD
createTo	createFrom and createTo together form a time range. Query the Data List created within this range.	No	2018-02-01	string, in yyyy-MM-DD format. Combined with createFrom, this queries Data created between 2018-01-01 and 2018-01-31 (inclusive of the 1st and 31st).
modifiedFrom	modifiedFrom and modifiedTo together form a time range. Query the Data List modified within this range.	No	2018-01-01	string, in yyyy-MM-DD format
modifiedTo	modifiedFrom and modifiedTo together form a time range. Query the Data List modified within this range.	No	2018-02-01	string, in yyyy-MM-DD format. Combined with modifiedFrom, this queries Data modified between 2018-01-01 and 2018-01-31 (inclusive of the 1st and 31st).

Return value

{
  "result": {
    "data": [
      "f30233fb-72e1-4af4-8cb8-c7e0ea9ee530",
      "bc0950a3-fe1b-459c-b6ba-282be38523ab",
      "f540cbd7-43eb-40de-b915-6716578a2802"
    ],
    "totalCount": 3,
    "currentPage": 1
  },
  "success": true
}

2.3 Get Instance Details List by Search Conditions

API: /v1/process/getInstances.json
HTTP method: GET
Permissions: the workflow must have instance View Permission configured (Admins are exempt)
Parameters

Parameter	Description	Required	Example	Alias
formUuid	Form ID	Yes	FORM-EF6Y4G8WO2FN0SUB43TDQ3CGC3FMFQ1G9400RCJ3
searchFieldJson	Query by in-Form Component values	No		Type: String See Appendix 2: Condition Search by Component value – Component value format
taskId	Task ID	No	2199132092	Rarely needed.
instanceStatus	Instance status	No	RUNNING	Enum values: RUNNING, TERMINATED, COMPLETED, ERROR. Meaning: Running, Terminated, Completed, error, respectively.
approvedResult	workflow Approval result	No	agree	Enum values: agree, disagree. Meaning: Accept, Decline, respectively.
currentPage	Current page	No	1	Must be greater than 0 Default: 1
pageSize	Records per page	No	10	Must be greater than 0 Default: 10 Cannot exceed 100
originatorId	Query by the Employee ID of the workflow submitter	No
createFrom	createFrom and createTo together form a time range. Query the Data List created within this range.	No	2018-01-01	string, in yyyy-MM-DD format
createTo	createFrom and createTo together form a time range. Query the Data List created within this range.	No	2018-02-01	string, in yyyy-MM-DD format. Combined with createFrom, this queries Data created between 2018-01-01 and 2018-01-31 (inclusive of the 1st and 31st). Data is fetched by appending 00:00:00 to the yyyy-MM-DD value
modifiedFrom	modifiedFrom and modifiedTo together form a time range. Query the Data List modified within this range.	No	2018-01-01	string, in yyyy-MM-DD format
modifiedTo	modifiedFrom and modifiedTo together form a time range. Query the Data List modified within this range.	No	2018-02-01	string, in yyyy-MM-DD format. Combined with modifiedFrom, this queries Data modified between 2018-01-01 and 2018-01-31 (inclusive of the 1st and 31st).

Return value

2.4 Get Workflow Instance Details by Instance ID

API: /v1/process/getInstanceById.json
HTTP method: GET
Parameters

Parameter	Description	Required	Example	Alias
processInstanceId	workflow instance ID	Yes	f30233fb-72e1-4af4-8cb8-c7e0ea9ee530

Return value

2.5 Delete Workflow Instance

API: /v1/process/deleteInstance.json
HTTP method: POST
Parameters

Parameter	Description	Required	Example	Alias
processInstanceId	workflow instance ID	Yes	f30233fb-72e1-4af4-8cb8-c7e0ea9ee530

Return value

2.6 Terminate Workflow Instance

API: /v1/process/terminateInstance.json
HTTP method: POST
Parameters

Parameter	Description	Required	Example	Alias
processInstanceId	workflow instance ID	Yes	f30233fb-72e1-4af4-8cb8-c7e0ea9ee530

Return value

2.7 Batch Get Workflow Instance Details by Instance IDs [Not yet Open]

API: /v1/process/getInstancesByIds.json
HTTP method: GET
Parameters

Parameter	Description	Required	Example	Alias
processInstanceIds	List of workflow instance IDs, comma-separated	Yes	f30233fb-72e1-4af4-8cb8-c7e0ea9ee530,d230233fb-72e1-4af4-8cb8-c7e0ea9ee530

Return value

2.7 Execute Single Task API

API: /v1/task/executeTask.json
HTTP method: POST
Parameters

Parameter	Description	Required	Example	Alias
taskId	Task ID	Yes	12002575
procInstId	Instance ID	Yes	f30233fb-72e1-4af4-8cb8-c7e0ea9ee530
outResult	Approval result	Yes	AGREE	AGREE (Accept), DISAGREE (Decline)
remark	Approval comment	Yes	Confirmed and accepted
formDataJson	Updated Form values	No		Reference: Appendix 1 – Save/Update Form data format. Components present in the parameters are updated; those not present remain unchanged. Detail values can only be updated as a whole; you cannot update a single Component’s value within a subform
noExecuteExpressions	Whether to skip validation and Association actions	No	y	When this task node has validation rules or Association actions bound, y -> do not execute validation rules and Association actions n -> execute validation rules and Association actions Defaults to n if omitted; that is, validation rules and Association actions will be executed

Return value

2.8 Get Approval Records

API: /v1/process/getOperationRecords.json
HTTP method: GET
Parameters

Parameter	Description	Required	Example	Alias
processInstanceId	workflow instance ID	Yes	f30233fb-72e1-4af4-8cb8-c7e0ea9ee530

Return value
Return format

{
  "success": true,
  "content": [
    {
      "operateTime": "2018-06-22 14:35:40",
      "remark": "",
      "taskHoldTime": 0,
      "type": "HISTORY",
      "operatorName": "YiDA user",
      "operator": "yida",
      "activityId": "sid-restartevent",
      "action": "Submit application",
      "actionExt": "submit",
      "id": 2846866118,
      "operatorPhotoUrl": "/photo/yida.128x128.jpg",
      "processInstanceId": "8c124808-82e7-473b-9a7a-43c29b310837",
      "showName": "Submit application",
      "operateType": "NEW_PROCESS",
      "domains": [],
      "operatorStatus": "A",
      "operatorAgentIds": [],
      "size": 1,
      "operatorDisplayName": "YiDA user",
      "taskId": "null"
    },
    {
      "taskHoldTime": 531398377,
      "type": "TODO",
      "operatorName": "YiDA user",
      "operator": "yida",
      "activityId": "sidJIOB2P2J1JW3RPMDOS28",
      "taskType": "COMMON_ALL_AT_ONCE",
      "actionExt": "doing",
      "operatorPhotoUrl": "/photo/yida.128x128.jpg",
      "processInstanceId": "8c124808-82e7-473b-9a7a-43c29b310837",
      "showName": "Assignee",
      "activeTime": "2018-06-22 14:35:41",
      "domains": [],
      "operatorStatus": "A",
      "operatorAgentIds": [],
      "size": 1,
      "operatorDisplayName": "YiDA user",
      "taskId": "2846866145"
    }
  ]
}

2.9 Update Workflow Instance

API: /v1/process/updateInstance.json
HTTP method: POST
Parameters

Parameter	Description	Required	Example	Alias
processInstanceId	Instance ID	Yes
updateFormDataJson	Updated Form data	Yes		Reference: Appendix 1 – Save/Update Form data format

Return value:
Return value demo

{
  "success":true
}

2.8 Get the Button List for a Workflow Design Node [Not yet Open]

API: /v1/process/getActivityButtonVOs.json
HTTP method: GET
Parameters

Parameter	Description	Required	Example	Alias
processCode	workflow code	Yes	TPROC—X1G***42ZMGA31OYELIWJ1
activityId	Node ID	Yes

Return value:
Return value demo:

{
  "result": [
    {
      "aliasEn": "Forward",
      "alias": "Forward",
    },
    {
      "aliasEn": "Append",
      "alias": "sign request",
    },
    {
      "aliasEn": "Return",
      "alias": "Return",
    }
  ],
  "success": true,
  "errorCode": null,
  "content": null,
  "errorMsg": null
}

3. Form Instance

3.1 Create Form Instance

API: /v1/form/saveFormData.json
HTTP method: POST
Parameters:

Parameter	Description	Required	Example	Alias
formUuid	Form ID	Yes	FORM-NJYJZELV8YZRDEI2N5IQ7L6VEDMR1VE9GMPCJB
appType	App ID	Yes	APP_DR4OK27ZKL5N22B907E8
formDataJson	Form data	Yes	{“textField_jcpm6agt”: “single-line”,“employeeField_jcos0sar”: [“workno”]}	Type: String Reference: Appendix 1 – Save/Update Form data format

Return value:
Return value demo:

{
  "result":"FINST-EF6Y93URN2UZ1SBPLIP9NAV6HR2GEO1Z4ZCHSCJ0",
  "success":true
}

3.2 Update Specified Component Values in a Form

API: /v1/form/updateFormData.json
HTTP method: POST
Parameters:

Parameter	Description	Required	Example	Alias
formInstId	Form data ID to Update	Yes	FINST-NJYJZELVVYZRVGJHR7M6FJW3ESJN1P1TCNPCJ9
updateFormDataJson	Form Component values to Update; Required	Yes	{“employeeField_jcpm5gy2”: [“xxxxx”,“yyyyy”]} (shown here with a member component)	Type: String Reference: Appendix 1 – Save/Update Form data format. Components present in the parameters are updated; those not present remain unchanged. Detail values can only be updated as a whole; you cannot update a single Component’s value within a subform
useLatestVersion	Use the latest Form Version for the Update	No	y	Important Default is n; y is recommended.

Return value:
Return value demo

{
  "success":true
}

3.3 Delete Form Instance

API: /v1/form/deleteFormData.json
HTTP method: POST
Parameters:

Parameter	Description	Required	Example	Alias
formInstId	Form data ID to Delete	Yes	FINST-NJYJZELVVYZRVGJHR7M6FJW3ESJN1P1TCNPCJ9

Return value:
Return value demo

{
  "success":true
}

3.4 Query Form Instance Details by Form Instance ID

API: /v1/form/getFormDataById.json
HTTP method: GET
Parameters:

Parameter	Description	Required	Example	Alias
formInstId	Instance ID of the instance to query	Yes	FINST-NJYJZELVVYZRVGJHR7M6FJW3ESJN1P1TCNPCJ9

Return value

API: /v1/form/searchFormDataIds.json
HTTP method: GET
Permissions: this API is subject to Page-level Permissions (Admins are exempt).
Parameters:

Parameter	Description	Required	Example	Alias
formUuid	Form ID	Yes	FORM-EF6Y4G8WO2FN0SUB43TDQ3CGC3FMFQ1G9400RCJ3
searchFieldJson	Query by in-Form Component values	No		Type: String See Appendix 2: Condition Search by Component value – Component value format
currentPage	Current page	No	1	Must be greater than 0 Default: 1
pageSize	Records per page	No	10	Must be greater than 0 Default: 10 Cannot exceed 100
originatorId	Query by the Employee ID of the data Submitter	No
createFrom	createFrom and createTo together form a time range. Query the Data List created within this range.	No	2018-01-01	string, in yyyy-MM-DD format
createTo	createFrom and createTo together form a time range. Query the Data List created within this range.	No	2018-02-01	string, in yyyy-MM-DD format. Combined with createFrom, this queries Data created between 2018-01-01 and 2018-01-31 (inclusive of the 1st and 31st). Data is fetched by appending 00:00:00 to the yyyy-MM-DD value
modifiedFrom	modifiedFrom and modifiedTo together form a time range. Query the Data List modified within this range.	No	2018-01-01	string, in yyyy-MM-DD format
modifiedTo	modifiedFrom and modifiedTo together form a time range. Query the Data List modified within this range.	No	2018-02-01	string, in yyyy-MM-DD format. Combined with modifiedFrom, this queries Data modified between 2018-01-01 and 2018-01-31 (inclusive of the 1st and 31st).
dynamicOrder	Sort	No	column: ’+‘	Ascending +, descending -

Return value
Return value demo:

{
  "result":{
    "data":[
      "FINST-EF6Y93URN2F02S745LTMW2D2G4WVDS16O17ISCJ0"
    ],
	  "totalCount":1,
    "currentPage":1
  },
  "success":true
}

API: /v1/form/searchFormDatas.json
HTTP method: GET
Permissions: this API is subject to Page-level Permissions (Admins are exempt).
Parameters

Parameter	Description	Required	Example	Alias
formUuid	Form ID	Yes	FORM-EF6Y4G8WO2FN0SUB43TDQ3CGC3FMFQ1G9400RCJ3
searchFieldJson	Query by in-Form Component values	No		Type: String See Appendix 2: Condition Search by Component value – Component value format
currentPage	Current page	No	1	Must be greater than 0; default 1
pageSize	Records per page	No	10	Must be greater than 0 Default: 10 Cannot exceed 100
originatorId	Query by the Employee ID of the data Submitter	No
createFrom	createFrom and createTo together form a time range. Query the Data List created within this range.	No	2018-01-01	string, in yyyy-MM-DD format (or precise to the second yyyy-MM-DD HH:mm:ss)
createTo	createFrom and createTo together form a time range. Query the Data List created within this range.	No	2018-02-01	string, in yyyy-MM-DD format (or precise to the second yyyy-MM-DD HH:mm:ss) Combined with createFrom, this queries Data created between 2018-01-01 and 2018-01-31 (inclusive of the 1st and 31st).
modifiedFrom	modifiedFrom and modifiedTo together form a time range. Query the Data List modified within this range.	No	2018-01-01	string, in yyyy-MM-DD format (or precise to the second yyyy-MM-DD HH:mm:ss)
modifiedTo	modifiedFrom and modifiedTo together form a time range. Query the Data List modified within this range.	No	2018-02-01	string, in yyyy-MM-DD format (or precise to the second yyyy-MM-DD HH:mm:ss). Combined with modifiedFrom, this queries Data modified between 2018-01-01 and 2018-01-31 (inclusive of the 1st and 31st).
dynamicOrder	Specify the Sort Field	No	{“numberField_1ac”:”+“}	Sort by the field numberField_1ac in ascending order

Return value

3.7 Get Form Definition

API: /v1/form/getFormComponentDefinationList.json
HTTP method: GET
Parameters:

Parameter	Description	Required	Example	Alias
formUuid	Form ID	Yes	FORM-NJYJZELV8YZRDEI2N5IQ7L6VEDMR1VE9GMPCJB
version	Form Version	No	1	Accepts the `version` field from formData. If empty, returns the latest Version definition

Return value:
Return format

{
    "success":true,
    "content":[
        {
            "label":"{"en_US":"CheckBox Field","zh_CN":"Multiselect","type":"i18n"}",
            "key":"checkboxField_jiwvhkdi"
        },
        {
            "label":"{"en_US":"Textarea Field","zh_CN":"Multi-line Text Box","type":"i18n"}",
            "key":"textareaField_jiwvhkdh"
        },
        {
            "label":"{"en_US":"Select Field","zh_CN":"Dropdown Single Select","type":"i18n"}",
            "key":"selectField_jiwvhkdg"
        }
    ]
}

3.8 Get Subform Data

API: /v1/form/listTableDataByFormInstIdAndTableId.json
HTTP method: GET
Parameters

Parameter	Description	Required	Example	Alias
formUuid	Form ID	Yes	FORM-EF6Y4G8WO2FN0SUB43TDQ3CGC3FMFQ1G9400RCJ3
formInstanceId	Instance ID of the instance to query	Yes	FINST-NJYJZELVVYZRVGJHR7M6FJW3ESJN1P1TCNPCJ9
tableFieldId	Unique identifier of the subform Component to query	Yes	tableField_ksyaujq1
currentPage	Current page	Yes	10	Must be greater than 0; default 1
pageSize	Records per page	Yes	50	Greater than 0 and less than 50; default 10

Return value
Return format

{
  "result": {
    "data": [
      {
        "textField_kstqokaa": ""
      },
      {
        "textField_kstqokaa": "1"
      },
      {
        "textField_kstqokaa": "2"
      }
    ],
    "totalCount": 120,
    "currentPage": 1,
  },
  "success": true,
}

4. Task Center

4.1 Submitted Tasks

API: /v1/process/getMySubmitInApp.json
HTTP method: GET
Parameters

Parameter	Description	Required	Example	Alias
pageSize	Records per page	Yes	10	Must be greater than 0; default 10; maximum: 100
currentPage	Current page	Yes	1	Must be greater than 0; default 1
keyword	Keyword	No

Return value:
Return format

Success:

{
  "result": {
    "data": [
      {
        "modifiedTime": "2018-04-12 19:44:14",
        "formInstanceId": "FINST-AJ1L4CJVXL0UIAIPR06ZA52U9HKUXXXXXX",
        "title": "Ticket",
        "instValue": [
          {
            "componentId": "node_jfwgghbo",
            "componentName": "TextField",
            "fieldId": "textField_jfwggg8e",
            "label": "Name",
            "validation": [],
            "fieldData": {
              "complexType": "custom",
              "dataType": "CHANGED",
              "pass": true,
              "value": "jack"
            },
            "errorMsg": null,
            "hasError": false
          }
        ],
        "processId": 0,
        "appType": "APP_R8MYLKYXXXXXX",
        "dataMap": {
          "textField_jfXXXXXX": "XXXXXX"
        },
        "originatorId": "XXXXXX",
        "formUuid": "FORM-0G7KPV3WZL0U3AHTOA9BFVXXXXXX",
        "dataType": "finst",
        "originatorAvatar": "http://static.dingtalk.com/media/lADPBbCc1R7VwSHNXXXXXX.jpg",
        "version": 0,
        "createTime": "2018-04-12 19:44:14"
      }
    ],
    "totalCount": 1,
    "currentPage": 1
  },
  "success": true
}

Failure:

{
  "errorCode": "TIANSHU_000006",
  "success": false,
  "errorMsg": "No Permissions"
}

Tips: instValue returns a string; its Content is in JSON array format. Sample request code:

 @Test
    public void postYidaOutTaskTest() {
        String api = "/yida_vpc/process/getMySubmmitInCorp.json";
        String corpId = "ding5d17e3add038d44535c2f4657eb63711";
        String userId = "141940523222800011";
        String corpCode = "AJ1L4CJVOL0UUQPTQWX8YOTCCS7O1T4CSNJF11";

        PostClient postClient = ExecutableClient.getInstance().newPostClient(api);
        postClient.addParameter("page", "1");
        postClient.addParameter("limit", "10");
        postClient.addParameter("corpId", corpId);
//        postClient.addParameter("appTypes", "[\"APP_I3D2FD2ZQB75KLLKL48Y\"]");
        postClient.addParameter("userId", userId);
        String token = DigestUtils.md5DigestAsHex(String.format("%s%s%s", corpId, userId, corpCode).getBytes()).toUpperCase();
        postClient.addParameter("token", token);

        String apiResult = postClient.post();
        Assert.notNull(apiResult);
    }

4.2 To-Do Tasks

API: /v1/task/getTodoTasksInApp.json
HTTP method: GET
Parameters

Parameter	Description	Required	Example	Alias
pageSize	Records per page	Yes	10	Must be greater than 0; default 10; maximum: 100
currentPage	Current page	Yes	1	Must be greater than 0; default 1
keyword	Keyword	No

Return value:
Return format

Success:

{
  "result": {
    "data": [
      {
        "processInstanceId": "XXXXXX",
        "originatorName": "XXX",
        "title": "workflow started by XXX",
        "originatorPhoto": "http://static.dingtalk.com/media/lADPdfafafsAXXXXXX.jpg",
        "titleEn": "workflow started by XXX",
        "createTime": "2018-04-13 13:35:58",
        "appType": "APP_R8MdfadfXXXXXX",
        "originatorNameEn": "XXXXXX",
        "originatorId": "XXXXXX",
        "taskId": "XXXXXX",
        "status": "NEW"
      }
    ],
    "totalCount": 1,
    "currentPage": 1
  },
  "success": true
}

Failure:

{
  "errorCode": "TIANSHU_000006",
  "success": false,
  "errorMsg": "No Permissions"
}

Sample request code:

 @Test
    public void postYidaOutTaskTest() {
        String api = "/yida_vpc/process/getTodoTasksInCorp.json";
        String corpId = "ding5d17e3add038d44535c2f4657eb63711";
        String userId = "141940523222800011";
        String corpCode = "AJ1L4CJVOL0UUQPTQWX8YOTCCS7O1T4CSNJF11";

        PostClient postClient = ExecutableClient.getInstance().newPostClient(api);
        postClient.addParameter("page", "1");
        postClient.addParameter("limit", "10");
        postClient.addParameter("corpId", corpId);
//        postClient.addParameter("appTypes", "[\"APP_I3D2FD2ZQB75KLLKL48Y\"]");
        postClient.addParameter("userId", userId);
        String token = DigestUtils.md5DigestAsHex(String.format("%s%s%s", corpId, userId, corpCode).getBytes()).toUpperCase();
        postClient.addParameter("token", token);

        String apiResult = postClient.post();
        Assert.notNull(apiResult);
    }

4.3 Completed Tasks

API: /v1/task/getDoneTasksInApp.json
HTTP method: GET
Parameters

Parameter	Description	Required	Example	Alias
pageSize	Records per page	Yes	10	Must be greater than 0; default 10; maximum: 100
currentPage	Current page	Yes	1	Must be greater than 0; default 1
keyword	Keyword	No

Return value:
Return format

Success:

{
  "result": {
    "data": [
      {
        "processInstanceId": "abc434rfds23XXXXXX",
        "finishTime": "2018-03-28 17:46:14",
        "originatorName": "",
        "title": "workflow Page started by XXX",
        "originatorPhoto": "//img.alicdn.com/tfs/TB1msdfsXXXXXX.jpg",
        "titleEn": "workflow Page started by XXX",
        "createTime": "2018-03-28 17:45:43",
        "appType": "XXXXXX",
        "originatorNameEn": "XXXXXX",
        "originatorId": "XXXXXX",
        "taskId": "XXXXXX",
        "status": "COMPLETED"
      }
    ],
    "totalCount": 1,
    "currentPage": 1
  },
  "success": true
}

Failure:

{
  "errorCode": "TIANSHU_000006",
  "success": false,
  "errorMsg": "No Permissions"
}

Sample request code:

 @Test
    public void postYidaOutTaskTest() {
        String api = "/yida_vpc/process/getDoneTasksInCorp.json";
        String corpId = "ding5d17e3add038d44535c2f4657eb63711";
        String userId = "141940523222800011";
        String corpCode = "AJ1L4CJVOL0UUQPTQWX8YOTCCS7O1T4CSNJF11";

        PostClient postClient = ExecutableClient.getInstance().newPostClient(api);
        postClient.addParameter("page", "1");
        postClient.addParameter("limit", "10");
        postClient.addParameter("corpId", corpId);
//        postClient.addParameter("appTypes", "[\"APP_I3D2FD2ZQB75KLLKL48Y\"]");
        postClient.addParameter("userId", userId);
        String token = DigestUtils.md5DigestAsHex(String.format("%s%s%s", corpId, userId, corpCode).getBytes()).toUpperCase();
        postClient.addParameter("token", token);

        String apiResult = postClient.post();
        Assert.notNull(apiResult);
    }

4.4 Tasks CC’d to Me (App-Level)

API: /v1/task/getNotifyMeTasksInApp.json
HTTP method: GET
Parameters

Parameter	Description	Required	Example	Alias
pageSize	Records per page	Yes	10	Must be greater than 0; default 10; maximum: 100
currentPage	Current page	Yes	1	Must be greater than 0; default 1
keyword	Keyword	No
processCodes	List of workflow codes	No	[“xx”,“xxx”]
instanceStatus	Instance status	No		Enum values

Return value:
Return format

Success:

{
  "result": {
    "data": [
      {
        "modifiedTime": "2018-04-12 19:44:14",
        "formInstanceId": "FINST-AJ1L4CJVXL0UIAIPR06ZA52U9HKUXXXXXX",
        "title": "Ticket",
        "instValue": [
          {
            "componentId": "node_jfwgghbo",
            "componentName": "TextField",
            "fieldId": "textField_jfwggg8e",
            "label": "Name",
            "validation": [],
            "fieldData": {
              "complexType": "custom",
              "dataType": "CHANGED",
              "pass": true,
              "value": "jack"
            },
            "errorMsg": null,
            "hasError": false
          }
        ],
        "processId": 0,
        "appType": "APP_R8MYLKYXXXXXX",
        "dataMap": {
          "textField_jfXXXXXX": "XXXXXX"
        },
        "originatorId": "XXXXXX",
        "formUuid": "FORM-0G7KPV3WZL0U3AHTOA9BFVXXXXXX",
        "dataType": "finst",
        "originatorAvatar": "http://static.dingtalk.com/media/lADPBbCc1R7VwSHNXXXXXX.jpg",
        "version": 0,
        "createTime": "2018-04-12 19:44:14"
      }
    ],
    "totalCount": 1,
    "currentPage": 1
  },
  "success": true
}

Failure:

{
  "errorCode": "TIANSHU_000006",
  "success": false,
  "errorMsg": "No Permissions"
}

Tips: instValue returns a string; its Content is in JSON array format.

5. Appendix

5.1 Save/Update Form Data Format

Every Component in a Form has a unique ID (viewable in the Premium panel on the right side of the Component in the page designer), and each Component’s value has its own fixed format. The form components currently supported are: Single-line, multi-line, Number, Select, Dropdown Single Select, Multiselect, Dropdown Multiselect, Date, Date range, User search box, Region Select, Department Select, Cascading Select, and subform Components.
When saving or updating Form data, the data in the Form is passed as a JsonString in the Map<String, Object> format. The key is the Component ID and Object is the Component’s value. The format of each Component’s value is as follows:

Component Type	Data format	demo	Alias
Single-line Text Box	string	”danhang”
Multi-line Text Box	string	”duohang”
Number Text Box	Number	1
Select	string	”Option 1”
Dropdown Single Select	string	”Option 1”
Multiselect	string array	[“Option 1”,“Option 2”]
Dropdown Multiselect	string array	[“Option 1”,“Option 2”]
Date Component	timestamp	1516204800000
Cascading Date	string array	[“1514736000000”,“1517328000000”]. If only the end time exists, ["",“1517328000000”]	The first is the timestamp string of the start time, and the second is the timestamp string of the end time
User search box	string array	[“231344123”,“231344156”]	The contents of [“xxx”] are userIds
City Select	string array	[“110000”,“110100”,“110101”]	The first must be the province ID, the second the city ID, and the third the district ID.
Department Select	string array	[“1123456”]	The contents of [“xxx”] are department IDs
Cascading Select	string array	[“part”,“part_b”]	Must be placed in the array in the order of the cascade
Attachment Component	string array	[ { “downloadUrl”: “File Download URL”, “name”: “File Name”, “previewUrl”: “File preview URL”, “url”: “File Download URL”, “ext”: “docx” } ]
Image Component	string array	[ { “downloadUrl”: “File Download URL”, “name”: “File Name”, “previewUrl”: “File preview URL”, “url”: “File Download URL”, } ]
Hyperlink Component	string array	[ { “link”:“http://www.yidaapps.com”, “text”:“YiDA” } ]
subform	JSONARRAY	[{“textField_jcr0069m”: “danhang1”},{“textField_jcr0069m”: “danhang2”}] (textField_jcr0069m is the Component ID of the Single-line under the subform)	Because a subform has multiple Records, JSONARRAY is used. Because each Record consists of values from many Components, a JSONObject is used to store each Component’s value.
Signature	string	”Image URL”

The complete Form data format is as follows:

{
  "textField_jcr0069m": "danhang",
  "textareaField_jcr0069n": "duohang",
  "numberField_jcr0069o": 1,
  "radioField_jcr0069p": "Option 1",
  "selectField_jcr0069q": "Option 1",
  "checkboxField_jcr0069r": [
    "Option 2",
    "Option 3"
  ],
  "multiSelectField_jcr0069s": [
    "Option 2",
    "Option 3"
  ],
  "dateField_jcr0069t": 1516636800000,
  "cascadeDate_jcr0069u": [
    "1514736000000",
    "1517328000000"
  ],
  "employeeField_jcr0069x": [
    "xxxxx"
  ],
  "citySelectField_jcr0069y": [
    "110000",
    "110100",
    "110101"
  ],
  "departmentField_jcr0069z": 1123456,
  "cascadeSelectField_jcr006a0": [
    "part",
    "part_b"
  ],
  {
  "attachmentField_jna1lvyb": [
    {
      "downloadUrl": "https://www.yidaapps.com/fileHandle?appType=default_tianshu_app&fileName=edd07ca9-1d2e-44b5-98fe-c1e16202f90d.txt&instId=&type=download",
      "name": "test.txt",
      "previewUrl": "https://www.yidaapps.com/inst/preview?appType=default_tianshu_app&fileName=test.txt&fileSize=4&downloadUrl=edd07ca9-1d2e-44b5-98fe-c1e16202f90d.txt",
      "url": "https://www.yidaapps.com/fileHandle?appType=default_tianshu_app&fileName=edd07ca9-1d2e-44b5-98fe-c1e16202f90d.txt&instId=&type=download",
      "ext": "txt"
    }
  ]
},
  "tableField_jcr006a1": [
    {
      "cascadeDate_jcr006aa": [
        "1514736000000",
        "1517328000000"
      ],
      "cascadeSelectField_jcr006ae": [
        "product",
        "product_a"
      ],
      "checkboxField_jcr006a7": [
        "Option 1",
        "Option 2",
        "Option 3"
      ],
      "citySelectField_jcr006ac": [
        "120000",
        "120100",
        "120102"
      ],
      "dateField_jcr006a9": 1517328000000,
      "departmentField_jcr006ad": ["1123456"],
      "employeeField_jcr006ab": [
        "yyyyy",
        "xxxxx"
      ],
      "multiSelectField_jcr006a8": [
        "Option 1",
        "Option 2",
        "Option 3"
      ],
      "numberField_jcr006a4": 2,
      "radioField_jcr006a5": "Option 2",
      "selectField_jcr006a6": "Option 3",
      "textField_jcr006a2": "Single-line under subform",
      "textareaField_jcr006a3": "Multi-line under subform"
    }
  ],
	"digitalSignatureField_kt3nh972": "https://tianshu-vpc.oss-cn-shanghai.aliyuncs.com/5e03f863-dd39-4f62-ba9b-497af2c9ad9f.png"
}

5.2 Condition Search by Component Value – Component Value Format

Every Component in a Form has a unique ID (viewable in the Premium panel on the right side of the Component in the page designer), and each Component’s Search format differs. The Form Components currently supported for Search are: Single-line, multi-line, Number, Select, Dropdown Single Select, Multiselect, Dropdown Multiselect, Date, Date range, User search box, Region Select, Department Select, Cascading Select, and subform Components.
When searching, each Component’s Search conditions are represented as a Map<String, Object>. The key is the Component ID and Object is the Component’s Search value. The Search type and value format for each Component are as follows:

Component Type	Data format	demo	Alias
Single-line Text Box	string	”danhang”	Fuzzy Search
Multi-line Text Box	string	”duohang”	Fuzzy Search
Number Text Box	string array	[“1”,“10”]	Range Search. The first is the minimum value, the second the maximum value.
Select	string	”Option 2”	Exact Search
Dropdown Single Select	string	”Option 2”	Exact Search
Multiselect	string array	[“Option 2”]	Array Search. The Search value must be a subset of the Multiselect value.
Dropdown Multiselect	string array	[“Option 2”]	Array Search. The Search value must be a subset of the Multiselect value.
Date Component	string array	[“1514736000000”,“1517414399000”]	Range Search. The first is the timestamp of the start Date, the second the timestamp of the end Date.
Date range	array	[[“1514736000000”,“1517414399000”],[“1514736000000”,“1517414399000”]]	Range Search. The first array is the Search range for the start of the Date range. The second array is the Search range for the end of the Date range.
User search box	string array	[“xxxxx”,“yyyyyy”]	Exact match. The value must match completely, including the order of Employee IDs.
City Select	string array	[500000, 500100, 500104, 500104003]	Array Search. The Search value must be a subset of the city value. Also, if there is a city ID, there must be a province ID. If there is a district ID, there must be both a province ID and a city ID.
Department Select	Number	1123456	Exact match
Cascading Select	string array	[“part”,“part_b”]	Array Search. Same restrictions as City Select.
subform Component	string	danhang	Fuzzy Search. The value under a subform is a single large text; Search uses Fuzzy Search.

Full example

{
  "textField_jcr0069m": "danhang",
  "textareaField_jcr0069n": "duohang",
  "numberField_jcr0069o": [
    "1",
    "10"
  ],
  "radioField_jcr0069p": "Option 1",
  "selectField_jcr0069q": "Option 1",
  "checkboxField_jcr0069r": [
    "Option 2"
  ],
  "multiSelectField_jcr0069s": [
    "Option 2",
    "Option 3"
  ],
  "dateField_jcr0069t": [
    1514736000000,
    1517414399000
  ],
  "cascadeDate_jcr0069u": [
    [
      1514736000000,
      1517414399000
    ],
    [
      1514736000000,
      1517414399000
    ]
  ],
  "employeeField_jcr0069x": [
    "xxxxx"
  ],
  "citySelectField_jcr0069y": [
    "110000",
    "110100",
    "110101"
  ],
  "departmentField_jcr0069z": ["1123456"],
  "cascadeSelectField_jcr006a0": [
    "part",
    "part_b"
  ],
  "tableField_jcr006a1": "subform data"
}

5.3 Workflow Instance Details Object Format

Field	Description	Example	Alias
actioners	Current task assignees of the workflow instance	[ { “name”: { “en_US”: “user_en_name”, “zh_CN”: “user_zh_name”, “type”: “i18n” }, “userId”: “workno” } ]	This field is empty if the workflow is already Completed and there is no assignee
processInstanceId	Instance ID	f30233fb-72e1-4af4-8cb8-c7e0ea9ee530	Unique
formUuid	workflow form ID	FORM-EF6Y4G8WO2FN0SUB43TDQ3CGC3FMFQ1G9400RCJ3
processCode	workflow Code	TPROC—EF6Y4G8WO2FN0SUB43TDQ3CGC3FMFQ1G9400RCJ4
title	Instance title	workflow started by xxxx	Returns the title corresponding to your Language environment
instanceStatus	Instance status	RUNNING
approvedResult	Approval verdict when the workflow ended	agree	agree -> passed disagree -> declined
originator	Submitter info	[ { “name”: { “en_US”: “user_en_name”, “zh_CN”: “user_zh_name”, “type”: “i18n” }, “userId”: “workno” } ]
data	Form data		See Appendix 4 – Form data format as a return value

Complete data format demo

{
  "result": {
    "data": {
      "actioners": [
        {
          "name": {
            "pureEn_US": "xxx",
            "en_US": "xxx",
            "zh_CN": "xxx",
            "type": "i18n"
          },
          "userId": "xxx"
        }
      ],
      "processInstanceId": "f30233fb-72e1-4af4-8cb8-c7e0ea9ee530",
      "formUuid": "FORM-EF6Y4G8WO2FN0SUB43TDQ3CGC3FMFQ1G9400RCJ3",
      "data": {
        "numberField_jcr0069o": 1,
        "multiSelectField_jcr0069s": [
          "Option 3",
          "Option 2"
        ],
        "textareaField_jcr0069n": "duohang",
        "employeeField_jcr0069x": [
          "xxxx"
        ],
        "departmentField_jcr0069z": "Information xxx Platform",
        "cascadeDate_jcr0069u": [
          "1514736000000",
          "1517328000000"
        ],
        "cascadeSelectField_jcr006a0": [
          "part",
          "part_b"
        ],
        "tableField_jcr006a1": [
          {
            "departmentField_jcr006ad": "Information xxx",
            "cascadeDate_jcr006aa": [
              "1514736000000",
              "1517328000000"
            ],
            "selectField_jcr006a6": "Option 3",
            "citySelectField_jcr006ac": [
              "Tianjin",
              "Tianjin",
              "Hedong District"
            ],
            "radioField_jcr006a5": "Option 2",
            "employeeField_jcr006ab": [
              "yyyyy",
              "xxxxxx"
            ],
            "dateField_jcr006a9": 1517328000000,
            "textField_jcr006a2": "Single-line under subform",
            "textareaField_jcr006a3": "Multi-line under subform",
            "cascadeSelectField_jcr006ae": [
              "product",
              "product_a"
            ],
            "numberField_jcr006a4": 2,
            "checkboxField_jcr006a7": [
              "Option 1",
              "Option 3",
              "Option 2"
            ],
            "multiSelectField_jcr006a8": [
              "Option 1",
              "Option 3",
              "Option 2"
            ]
          }
        ],
        "selectField_jcr0069q": "Option 1",
        "citySelectField_jcr0069y": [
          "Beijing",
          "Beijing",
          "Dongcheng District"
        ],
        "checkboxField_jcr0069r": [
          "Option 3",
          "Option 2"
        ],
        "textField_jcr0069m": "danhang",
        "radioField_jcr0069p": "Option 1",
        "dateField_jcr0069t": 1516636800000
      },
      "processCode": "TPROC--EF6Y4G8WO2FN0SUB43TDQ3CGC3FMFQ1G9400RCJ4",
      "originator": {
        "name": {
          "pureEn_US": "xxx",
          "en_US": "xxxx",
          "zh_CN": "xxx",
          "type": "i18n"
        },
        "userId": "xxxx"
      },
      "title": "workflow started by xxx",
      "instanceStatus": "RUNNING"
    },
    "totalCount": 1,
    "currentPage": 1
  },
  "success": true
}

5.4 Form Data Format as a Return Value

The format of Form data as a return value is essentially the same as in “Appendix 1 – Save/Update Form data format”. The differences are:

On submission, the Region Component value is [“Province ID”, “City ID”, “District ID”]. As a return value, it is [“Province Name”,“City Name”,“District Name”].
Select, Dropdown Single Select, Multiselect, and Dropdown Multiselect are internationalized. As return values, they return the data value corresponding to the language parameter you passed.

5.5 Form Instance Details Object Format

Field	Description	Example	Alias
gmtModified	Last Modified time	2018-01-24 11:22:01
formUuid	Form ID	FORM-EF6Y93URN24F1SCX15VA2P918LPEIJ2H3UFORCJ1
formInstId	Instance ID	FINST-EF6Y93URN2F02S745LTMW2D2G4WVDS16O17ISCJ0
originator	Submitter details	[{“name”: {“en_US”: “user_en_name”,“zh_CN”: “user_zh_name”,“type”: “i18n”},“userId”: “workno”}]
formData	Form data details		See Appendix 4 – Form data format as a return value

A complete demo is as follows:

{
  "result": {
    "gmtModified": "2018-01-24 11:22:01",
    "formUuid": "FORM-EF6Y93URN24F1SCX15VA2P918LPEIJ2H3UFORCJ1",
    "formInstId": "FINST-EF6Y93URN2F02S745LTMW2D2G4WVDS16O17ISCJ0",
    "formData": {
      "numberField_jcr0069o": 1,
      "multiSelectField_jcr0069s": [
        "Option 3",
        "Option 2"
      ],
      "textareaField_jcr0069n": "duohang",
      "employeeField_jcr0069x": [
        "xxxx"
      ],
      "departmentField_jcr0069z": "xxxx",
      "cascadeDate_jcr0069u": [
        "1514736000000",
        "1517328000000"
      ],
      "cascadeSelectField_jcr006a0": [
        "part",
        "part_b"
      ],
      "tableField_jcr006a1": [
        {
          "departmentField_jcr006ad": "xxxx",
          "cascadeDate_jcr006aa": [
            "1514736000000",
            "1517328000000"
          ],
          "selectField_jcr006a6": "Option 3",
          "citySelectField_jcr006ac": [
            "Tianjin",
            "Tianjin",
            "Hedong District"
          ],
          "radioField_jcr006a5": "Option 2",
          "employeeField_jcr006ab": [
            "xxxxxx",
            "yyyyyy"
          ],
          "dateField_jcr006a9": 1517328000000,
          "textField_jcr006a2": "Single-line under subform",
          "textareaField_jcr006a3": "Multi-line under subform",
          "cascadeSelectField_jcr006ae": [
            "product",
            "product_a"
          ],
          "numberField_jcr006a4": 2,
          "checkboxField_jcr006a7": [
            "Option 1",
            "Option 3",
            "Option 2"
          ],
          "multiSelectField_jcr006a8": [
            "Option 1",
            "Option 3",
            "Option 2"
          ]
        }
      ],
      "selectField_jcr0069q": "Option 1",
      "citySelectField_jcr0069y": [
        "Beijing",
        "Beijing",
        "Dongcheng District"
      ],
      "checkboxField_jcr0069r": [
        "Option 3",
        "Option 2"
      ],
      "textField_jcr0069m": "danhang",
      "radioField_jcr0069p": "Option 1",
      "dateField_jcr0069t": 1516636800000
    },
    "originator": {
      "name": {
        "pureEn_US": "userEnglishName",
        "en_US": "userEnglishName",
        "zh_CN": "userName",
        "type": "i18n"
      },
      "userId": "xxxx"
    }
  },
  "success": true
}

​1. Usage Notes

​1.1 HTTP URL Concatenation Rules

​2. Workflow Instance

​2.1 Start Workflow

​2.2 Search Workflow Instance IDs by Conditions

​2.3 Get Instance Details List by Search Conditions

​2.4 Get Workflow Instance Details by Instance ID

​2.5 Delete Workflow Instance

​2.6 Terminate Workflow Instance

​2.7 Batch Get Workflow Instance Details by Instance IDs [Not yet Open]

​2.7 Execute Single Task API

​2.8 Get Approval Records

​2.9 Update Workflow Instance

​2.8 Get the Button List for a Workflow Design Node [Not yet Open]

​3. Form Instance

​3.1 Create Form Instance

​3.2 Update Specified Component Values in a Form

​3.3 Delete Form Instance

​3.4 Query Form Instance Details by Form Instance ID

​3.5 Search Form Instance ID List by Conditions

​3.6 Search Form Instance Details List by Conditions

​3.7 Get Form Definition

​3.8 Get Subform Data

​4. Task Center

​4.1 Submitted Tasks

​4.2 To-Do Tasks

​4.3 Completed Tasks

​4.4 Tasks CC’d to Me (App-Level)

​5. Appendix

​5.1 Save/Update Form Data Format

​5.2 Condition Search by Component Value – Component Value Format

​5.3 Workflow Instance Details Object Format

​5.4 Form Data Format as a Return Value

​5.5 Form Instance Details Object Format

1. Usage Notes

1.1 HTTP URL Concatenation Rules

2. Workflow Instance

2.1 Start Workflow

2.2 Search Workflow Instance IDs by Conditions

2.3 Get Instance Details List by Search Conditions

2.4 Get Workflow Instance Details by Instance ID

2.5 Delete Workflow Instance

2.6 Terminate Workflow Instance

2.7 Batch Get Workflow Instance Details by Instance IDs [Not yet Open]

2.7 Execute Single Task API

2.8 Get Approval Records

2.9 Update Workflow Instance

2.8 Get the Button List for a Workflow Design Node [Not yet Open]

3. Form Instance

3.1 Create Form Instance

3.2 Update Specified Component Values in a Form

3.3 Delete Form Instance

3.4 Query Form Instance Details by Form Instance ID

3.5 Search Form Instance ID List by Conditions

3.6 Search Form Instance Details List by Conditions

3.7 Get Form Definition

3.8 Get Subform Data

4. Task Center

4.1 Submitted Tasks

4.2 To-Do Tasks

4.3 Completed Tasks

4.4 Tasks CC’d to Me (App-Level)

5. Appendix

5.1 Save/Update Form Data Format

5.2 Condition Search by Component Value – Component Value Format

5.3 Workflow Instance Details Object Format

5.4 Form Data Format as a Return Value

5.5 Form Instance Details Object Format
