HTTP Connector

Feature	Free plan	Basic edition	Professional edition	Dedicated edition
HTTP connector	1	1	Unlimited	Unlimited

Step 1: Create a Connector

Step 1

Step 2

Click Platform management in the upper-right corner to open the platform management page.

Step 3

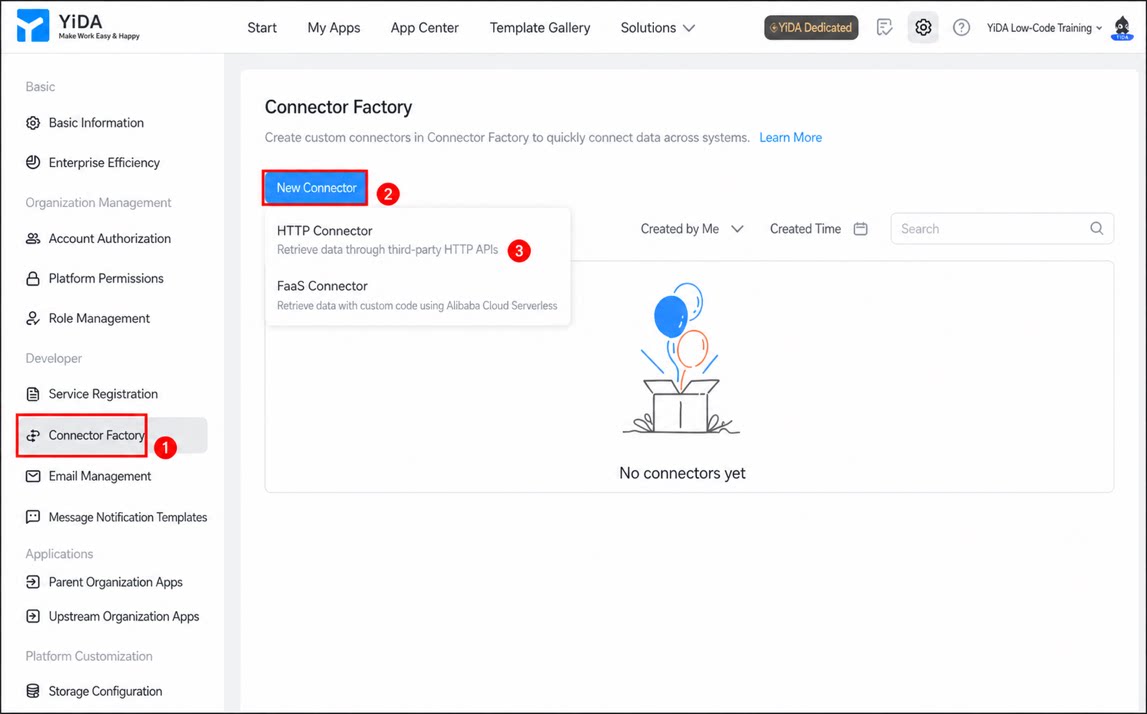

In the left-side menu, click Connector Factory, click Create connector, and then select HTTP connector.

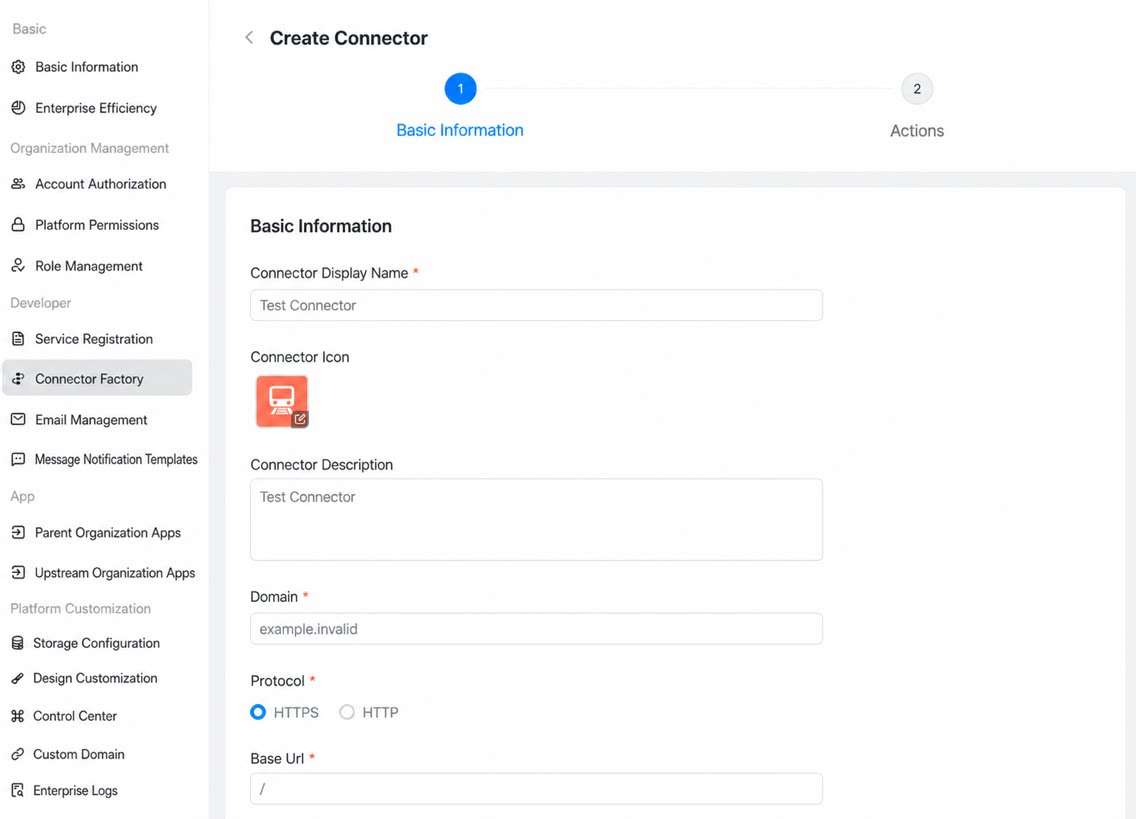

Configure the basic information for the connector by referring to the following details, and then click Next

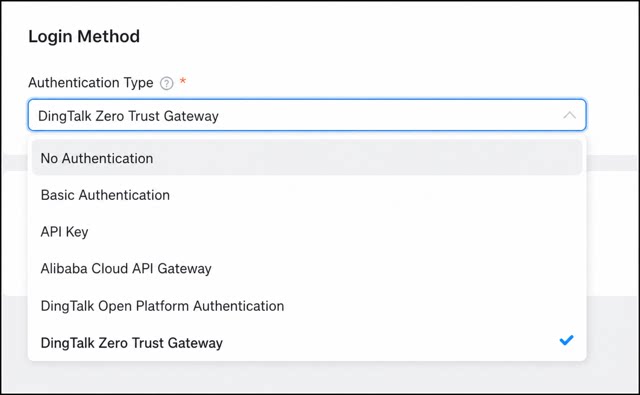

Configure the Authentication type by referring to the following details

Authentication type	Description
No authentication	No credentials are required to call the API. This is typically used for public APIs.
Basic authentication	Standard HTTP Authorization. The request header contains credentials that the server uses to verify the identity of the user agent. Add the Base64-encoded account and password to the header, for example, `Authorization: Basic YWxhZGRpbjpvcGVuc2VzYW1l`. Encoding format: `account:password`. You only need to configure the labels for the account and password fields, which tell users what to enter when registering credentials. • username label • password label
API key	The API key authentication method. The API key is valid long-term (store it securely). The requester generates a secret key in the target system, and developers can then use this credential to call public APIs that support this authentication method. • Parameter label: Displayed as a prompt when configuring credentials. • Parameter name: The apiKey name required by the system. • Parameter location: Choose whether to send the credential as a query parameter or in the header, based on what the target system requires.
Alibaba Cloud API Gateway	After you create the connector, add a credential template. Once the App Code is entered in the template, you can call the corresponding Alibaba Cloud API. For more information, see Call APIs by using AppCode authentication.
DingTalk Open Platform authentication	After you create the connector, add a credential template. Once the `App Key` and `App Secret` are entered in the template, you can call DingTalk Open Platform APIs (including some YiDA APIs). After the credential template is added, YiDA automatically generates the `access_token` through authentication and adds it to the `Header` parameter `x-acs-dingtalk-access-token` for each request. You do not need to generate it again. For more information, see DingTalk app development process.
DingTalk Zero Trust Gateway	For details on how to use the DingTalk Zero Trust Gateway, see DingTalk Open Platform - Zero Trust Gateway authentication.

Step 2: Create an Action

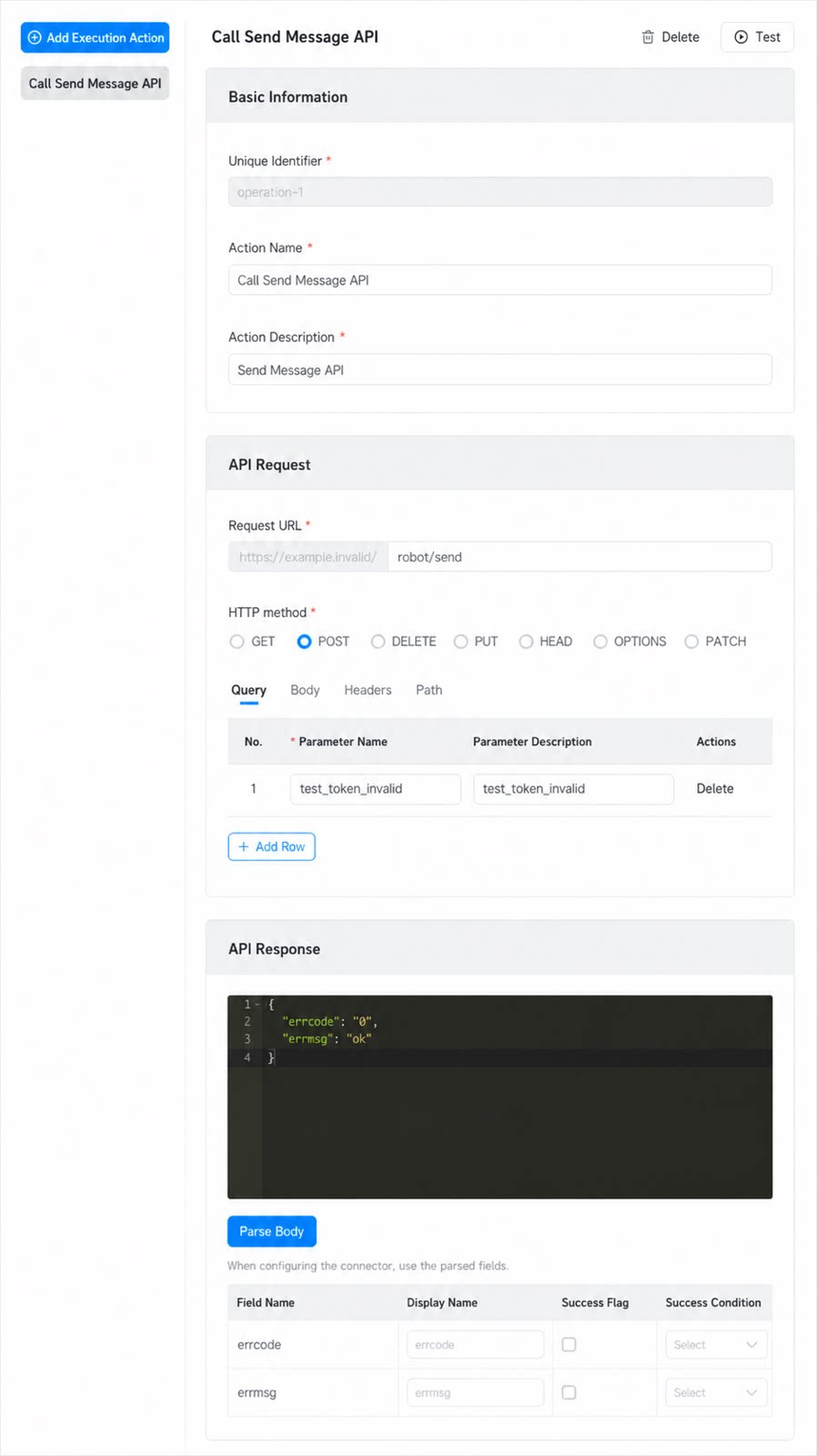

On the action page, click Create action, and then configure the settings based on the following information.

Name	Description
Basic information	Configure the basic information for the current action. • Unique identifier: Used to distinguish between different actions. • Action name: The name of the action. • Action description: The description of the action.
API request	Configure the API endpoint that the current action calls when triggered. • Request URL: The API request link. The request domain is automatically populated with the connector’s domain. • HTTP method: Supports GET, POST, DELETE, PUT, HEAD, OPTIONS, PATCH, and other methods. • Query: The request parameters, typically appended after the question mark `?` in the URL. Click the plus sign to add one. • Body: For POST requests and similar methods, a body field may also be included. It supports parsing using JSON. • Headers: Customize additional request headers here. Only static configuration is currently supported. • Path: Variables in the URL enclosed in curly braces, such as `{pathParam}`, where `pathParam` is the variable name. Note: request parameters support the system fields for signed-in user ID and organization ID.
API response	Configure the expected response after a successful API call. Supports JSON parsing. Note: If the API returns a non-JSON object, it cannot be used directly in integration & automation. You must parse it in a script node yourself.

Step 3: Configure Authentication

Every custom connector must have a corresponding request authentication scheme, even for No authentication.

Create an account

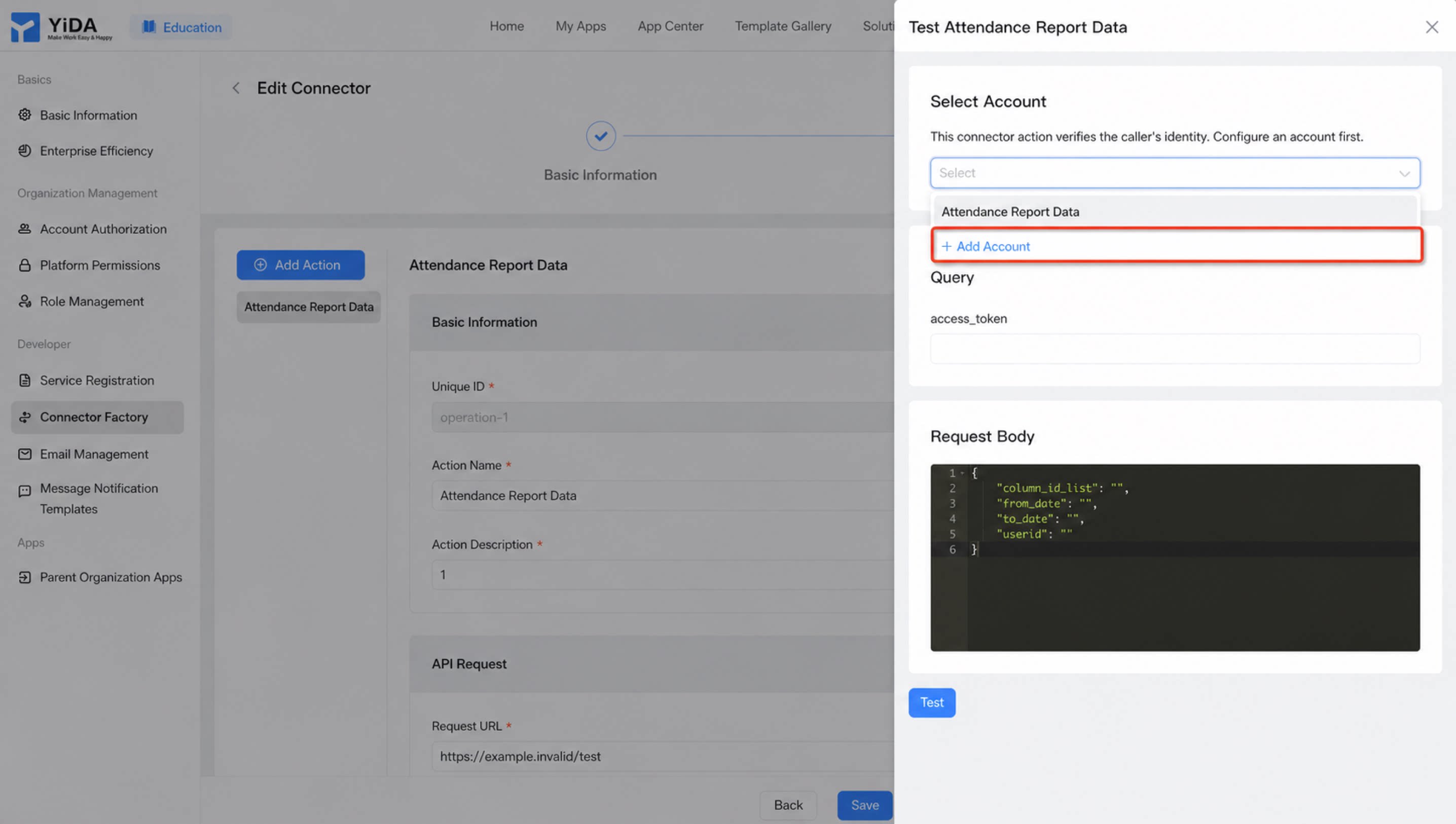

On a configured connector, click Test to select an authentication account. You can also add a new authentication account at this step.

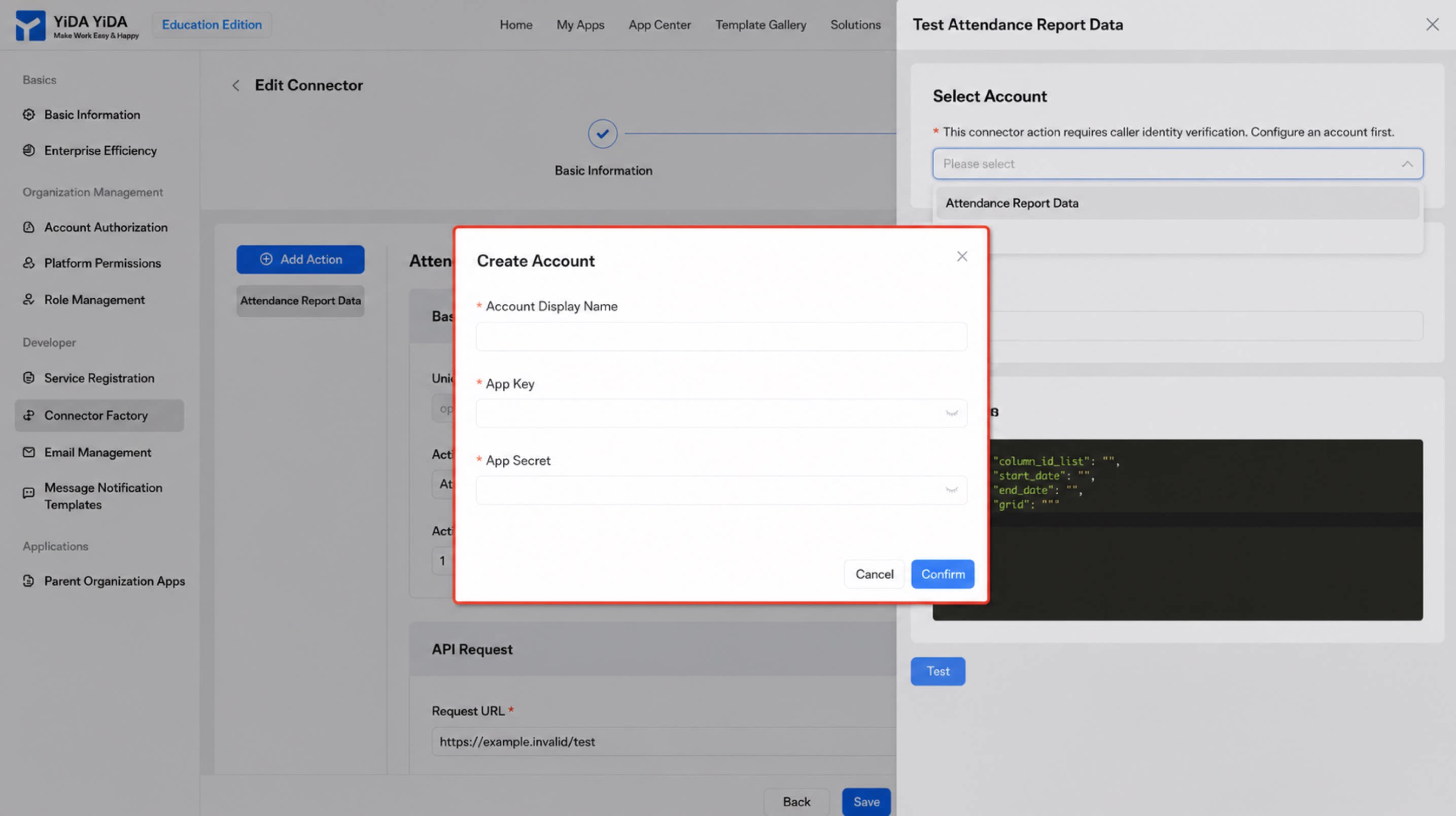

Enter the account display name, App Key, App Secret, and other information, and then click Confirm.

Step 4: Test the Connector

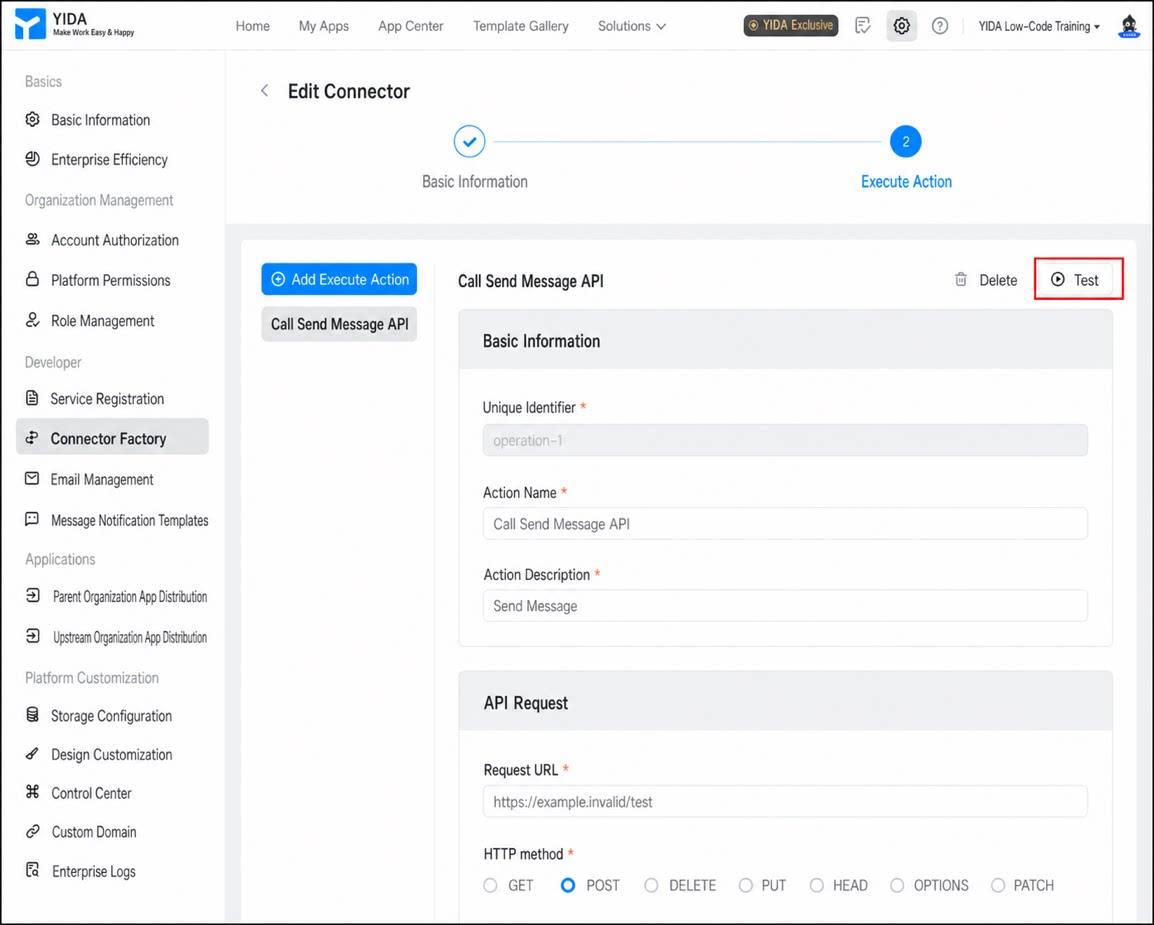

On the connector details page, click Test in the upper-right corner

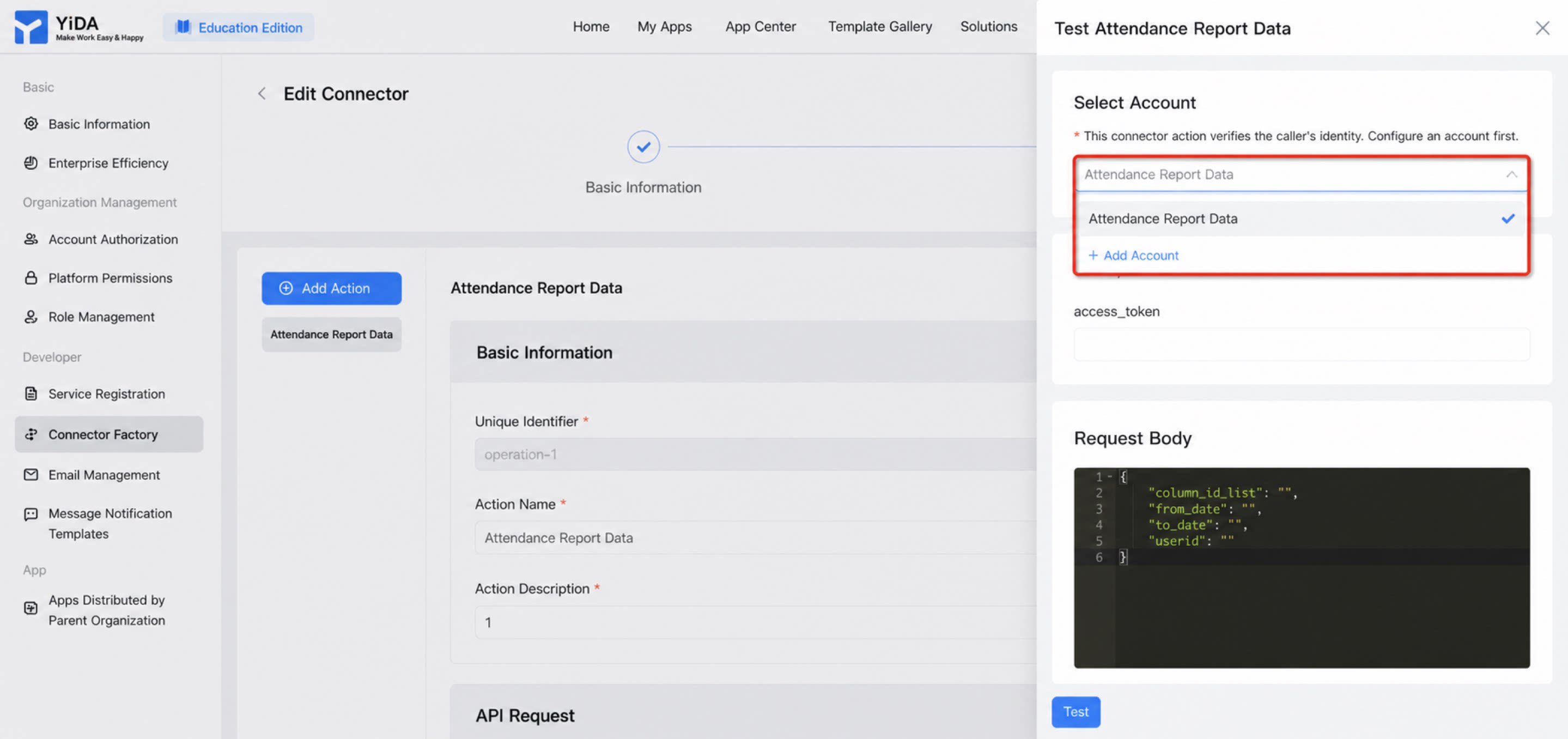

Select the authentication to use, and configure the test parameters

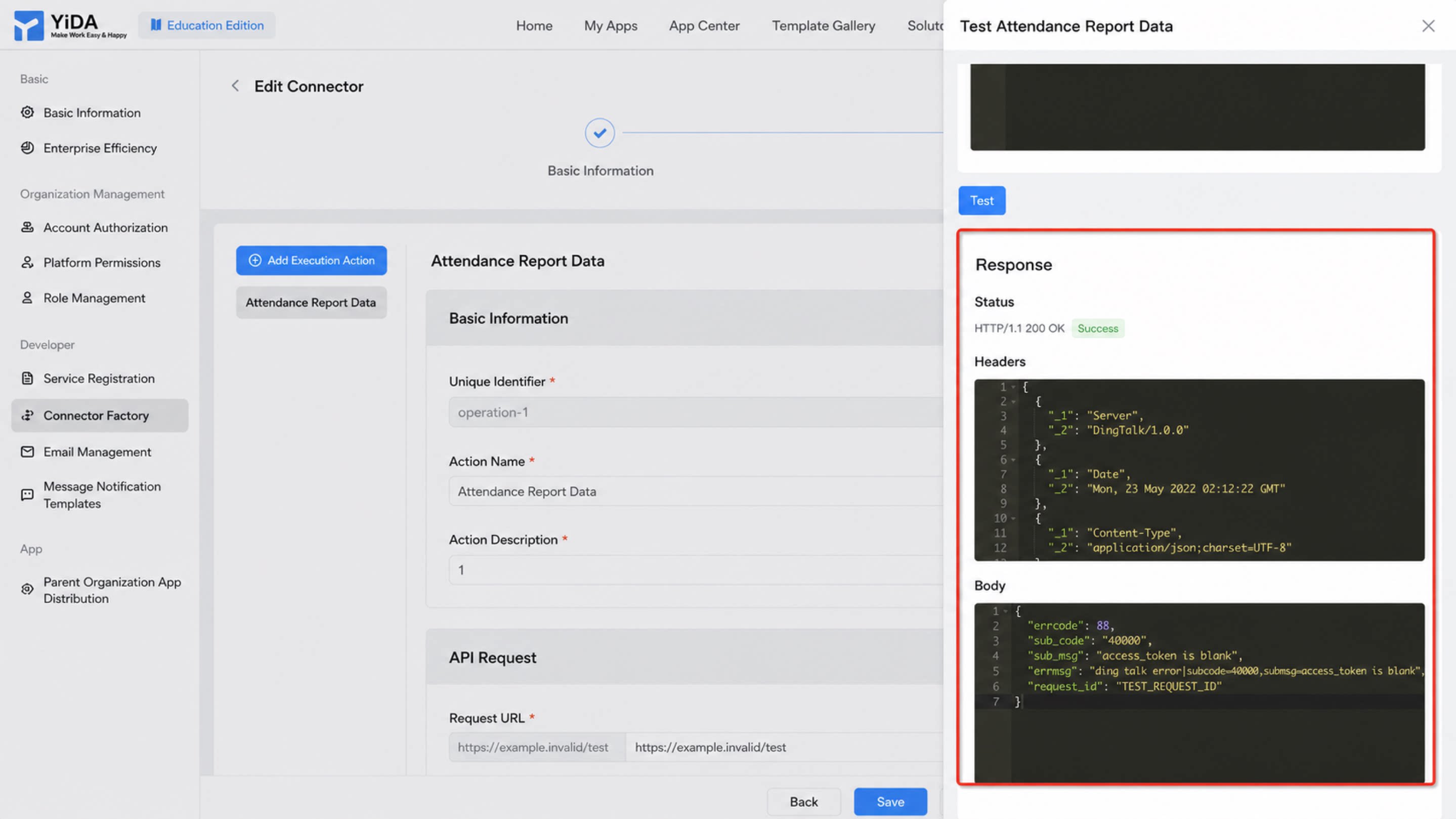

Click Test. If the expected result appears, the configuration is successful
