1. Department Component

​
1.1 What Is the Department Component

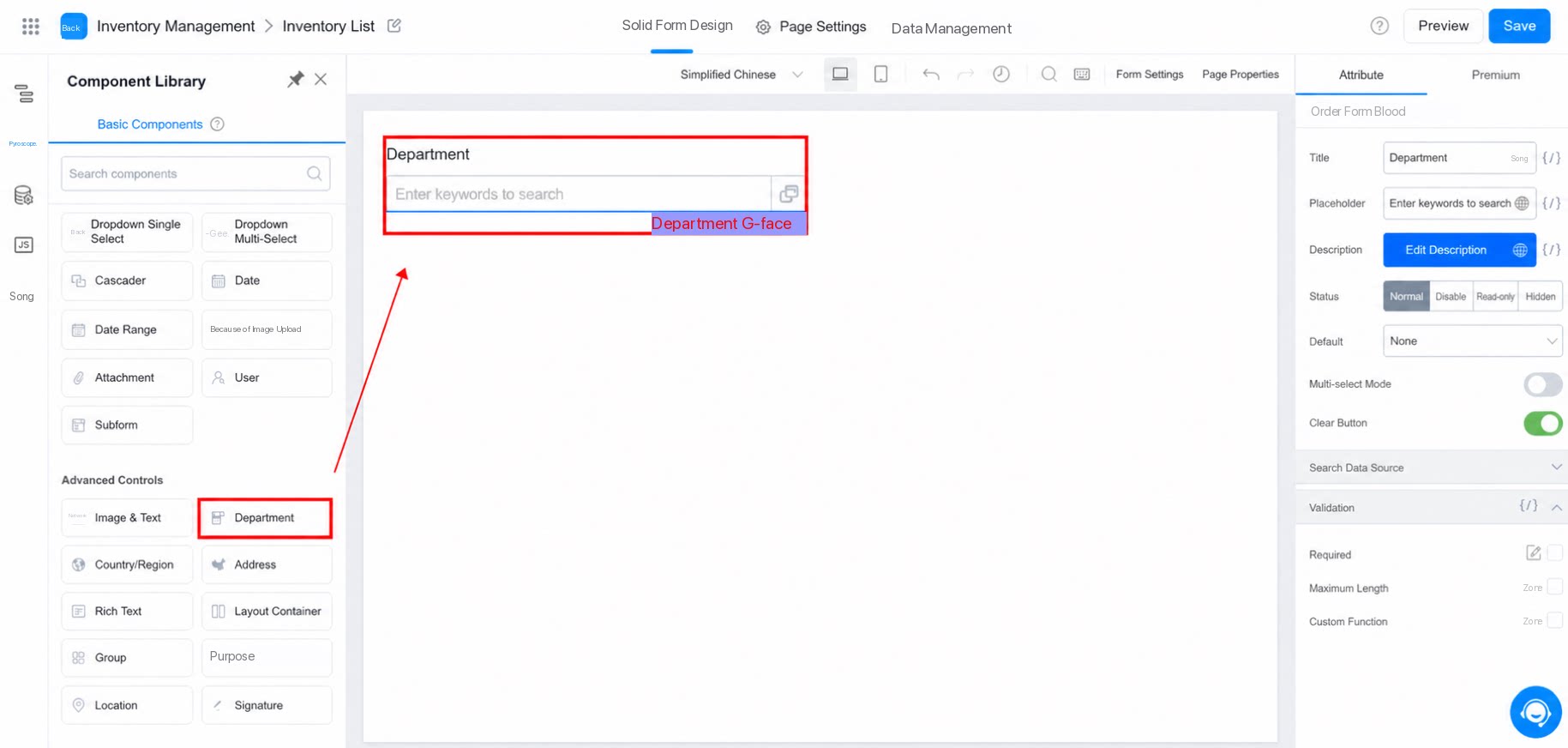

A component that lets you select the department a user belongs to. Add the department component

​
1.2 Use Cases

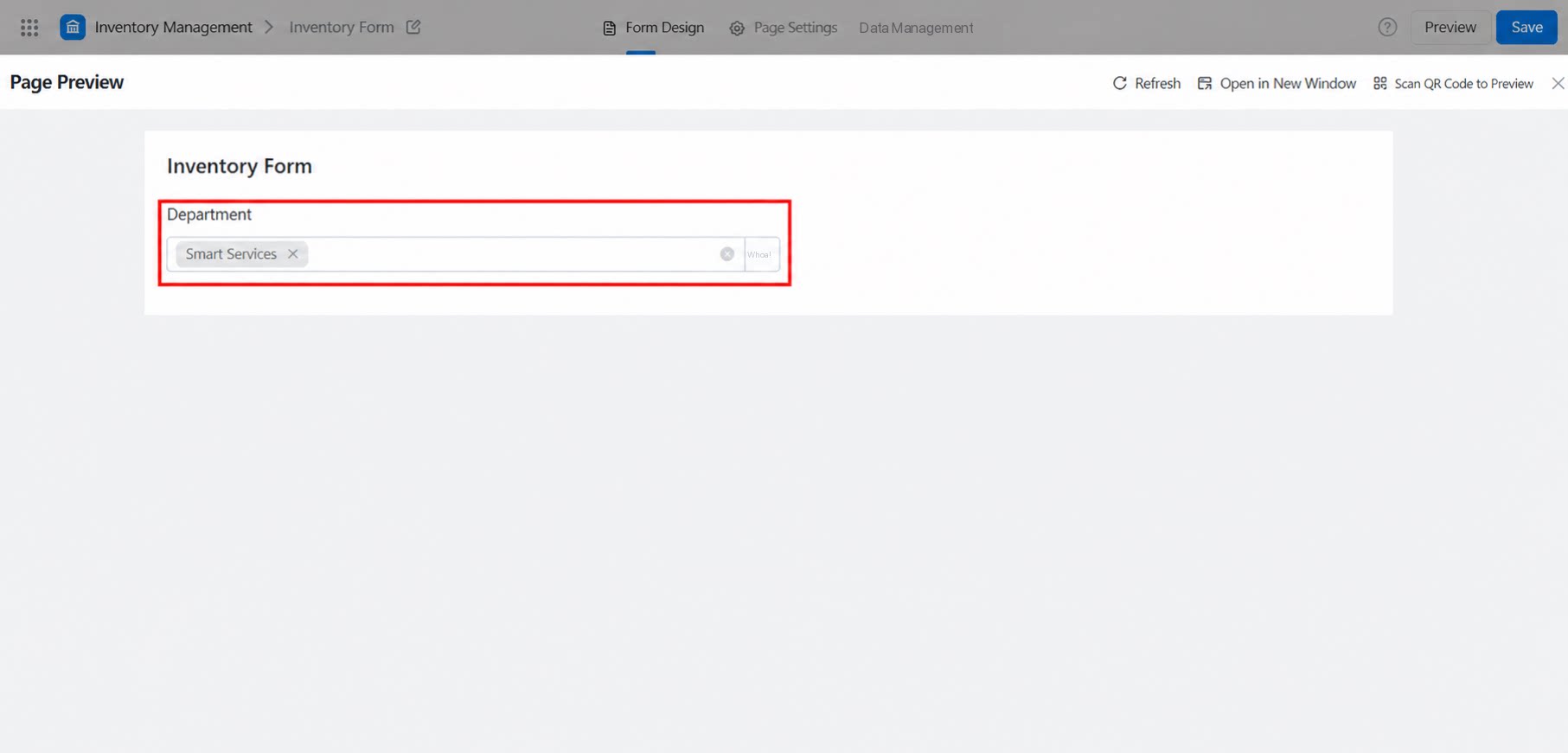

Retrieves the department a user belongs to. By default, this component displays the current signed-in user’s department.

​
1.3 Premium Query Feature

  • When you use the YiDA department component on the DingTalk desktop client or in a web browser, a new Premium query feature is available, supporting selection based on the Contacts tree structure and organization drill-down capabilities.

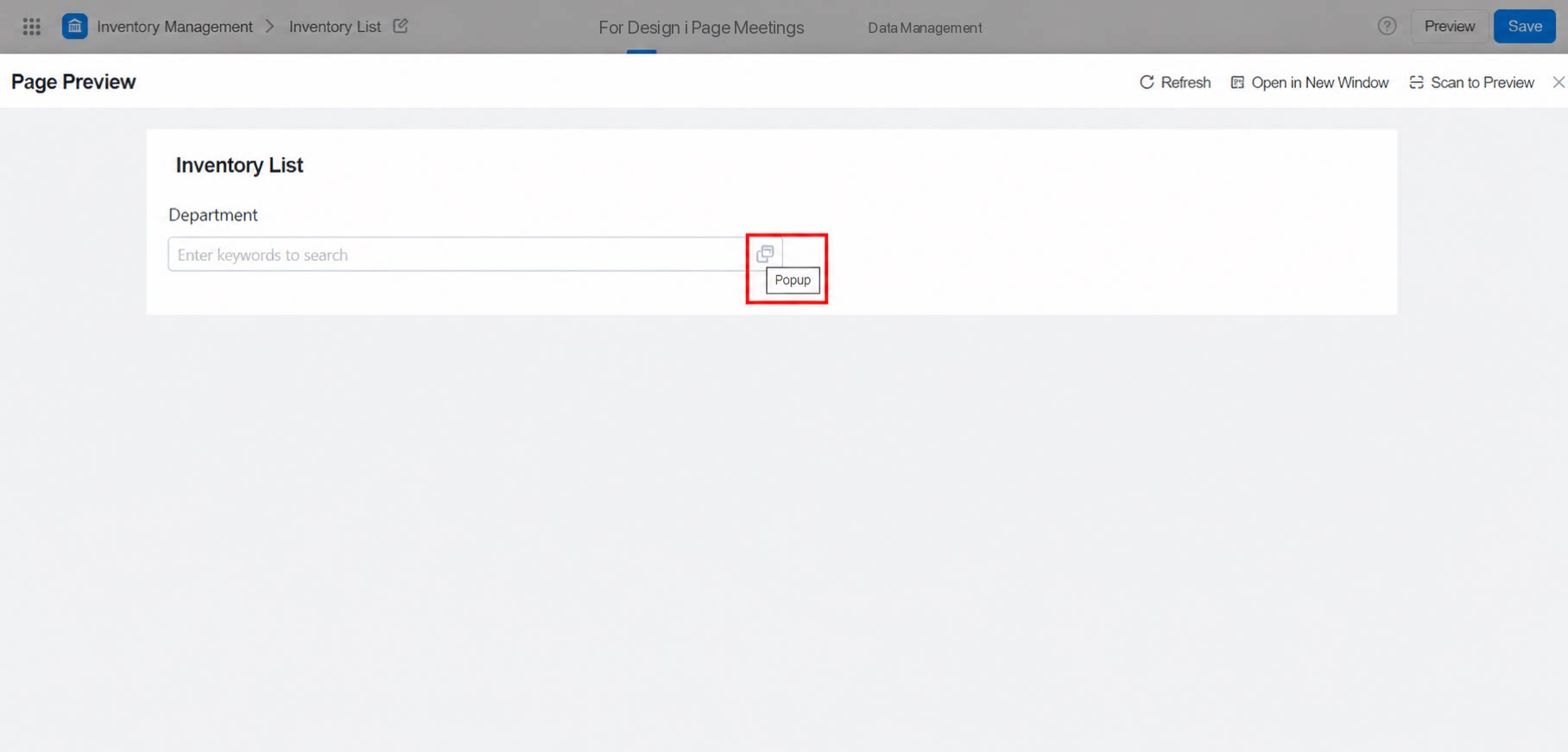

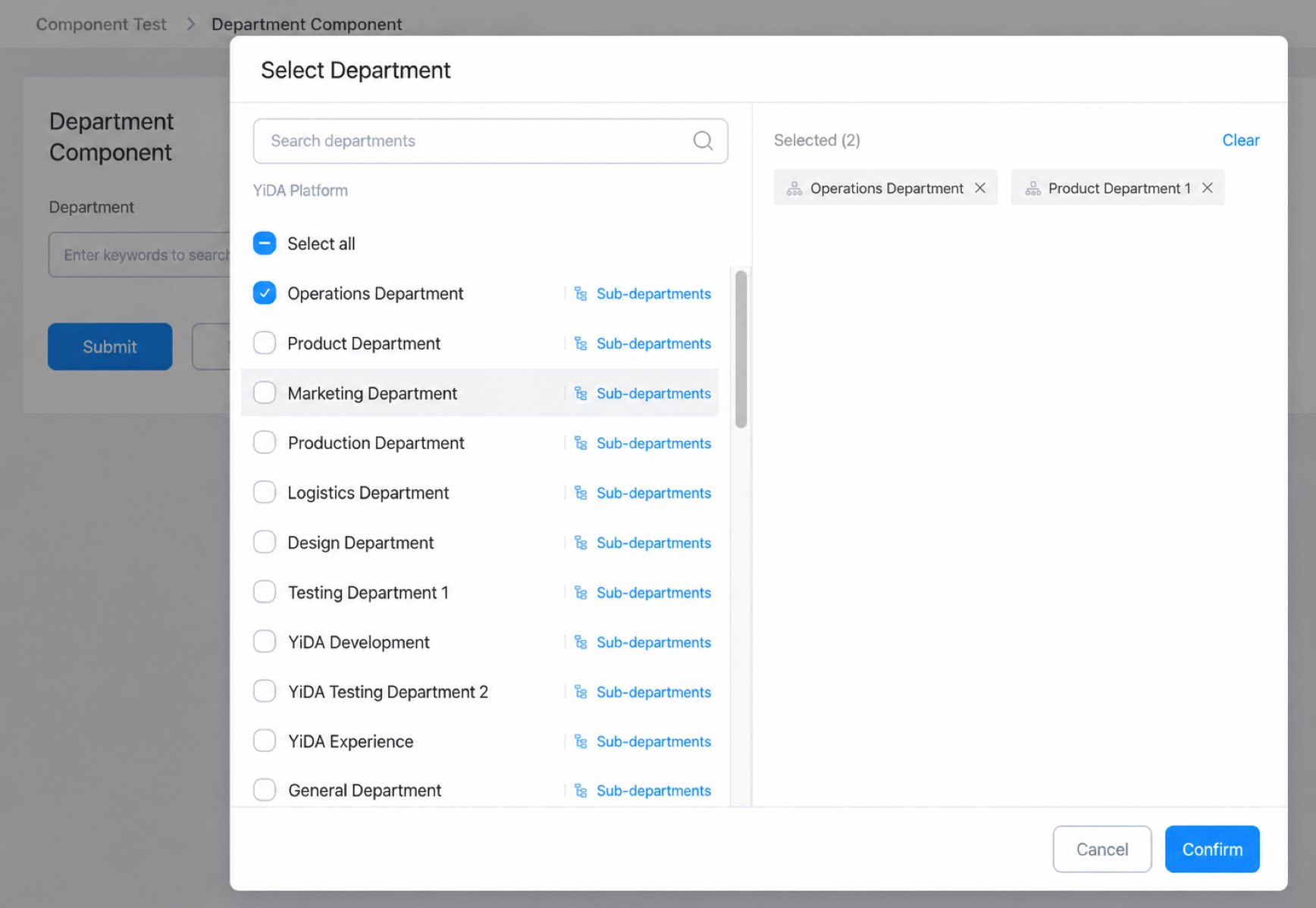

  • The Premium user-picker entry is on by default on the desktop client. Click it to open a modal that provides a complete department selection page.

​
1.3.1 Use Cases

  • Based on the tier structure of the organization’s Contacts, drill down through the tree structure to query and select the target department.

​
2. Attributes

​
2.1 Multiselect

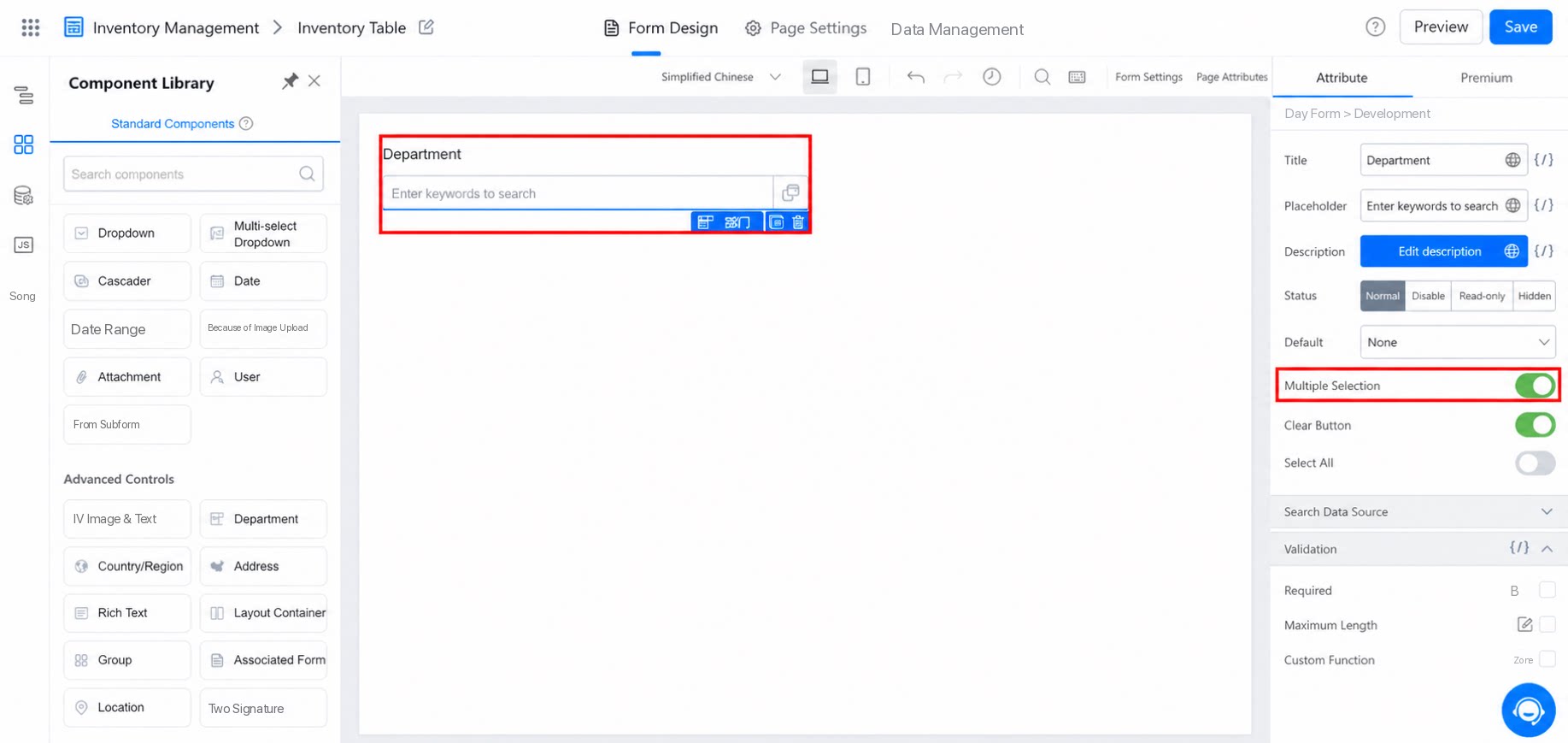

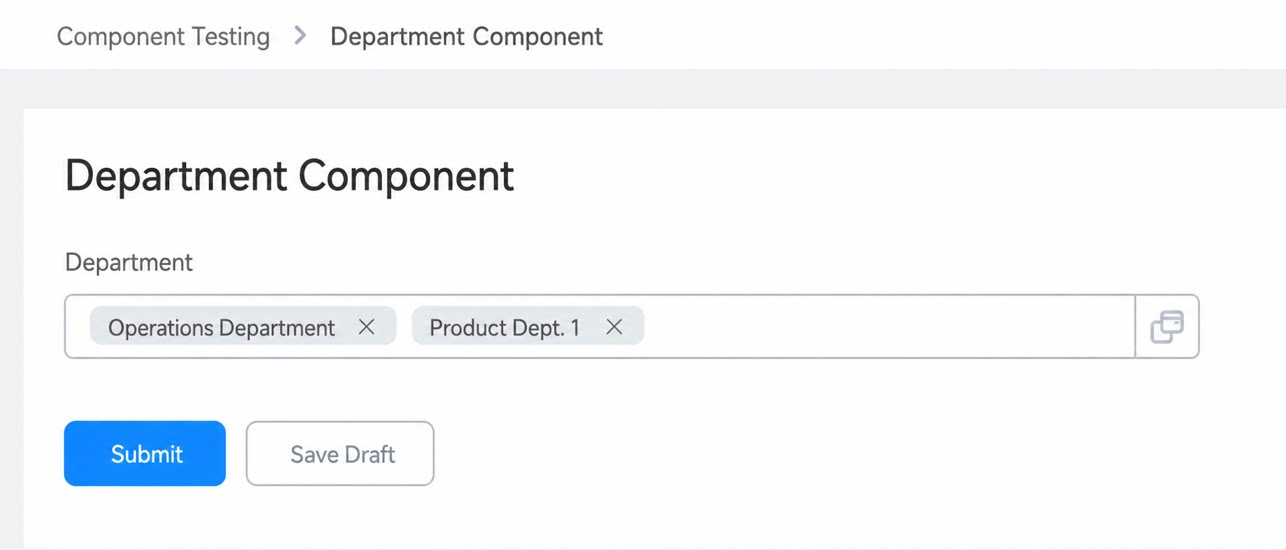

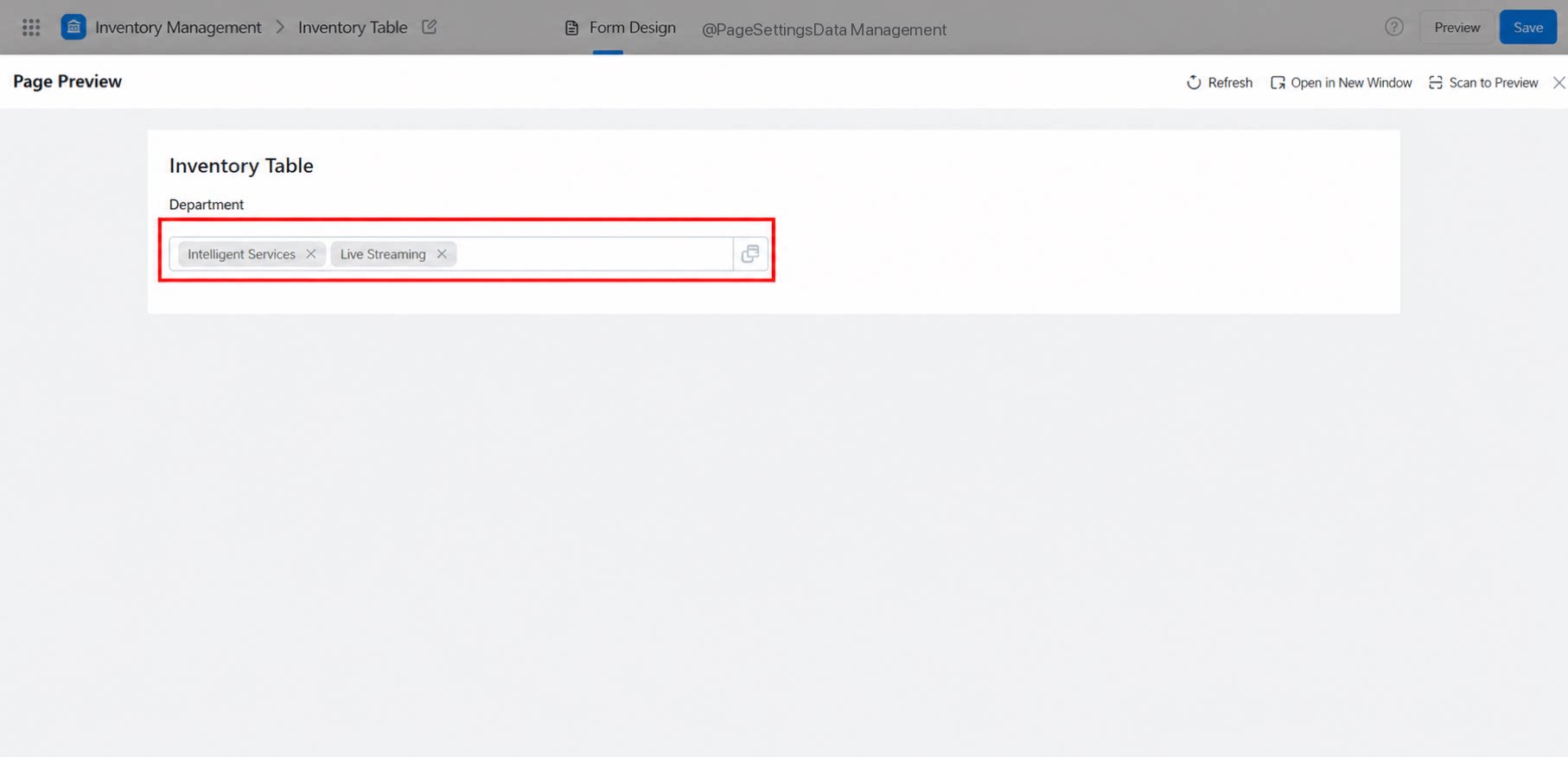

Multiselect mode is off by default. When it is on, you can select multiple departments, as shown below: Multiselect mode

​

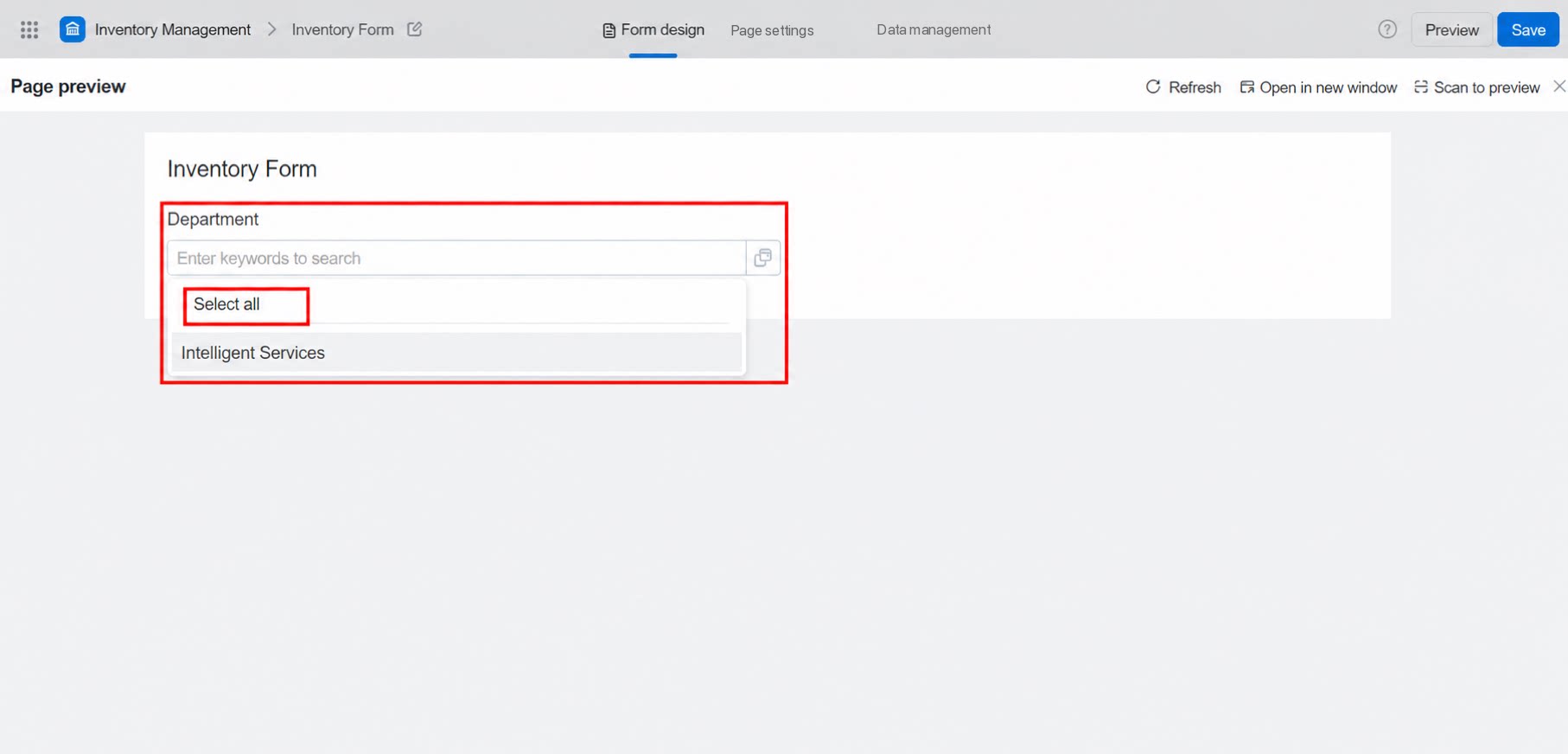

2.2 Select All

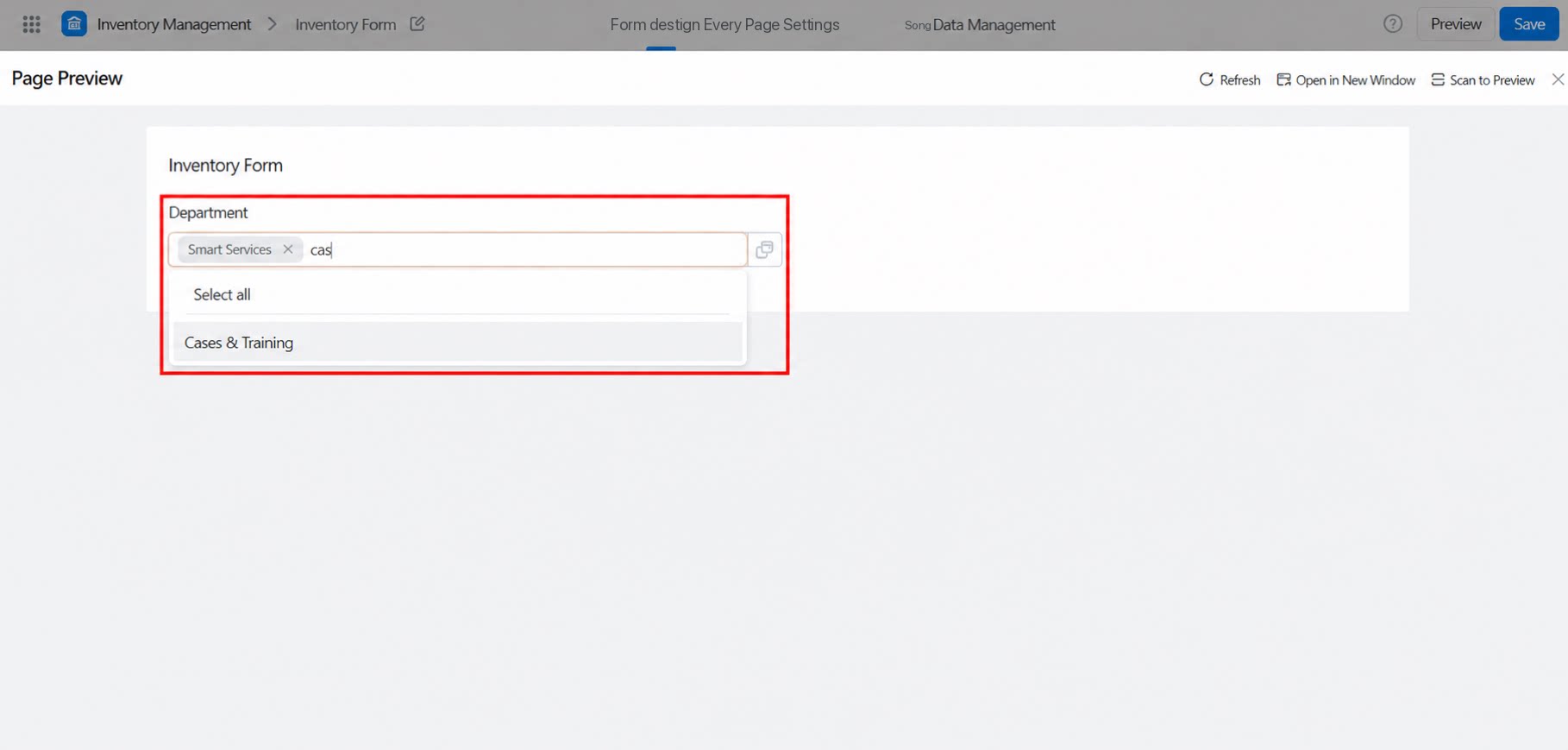

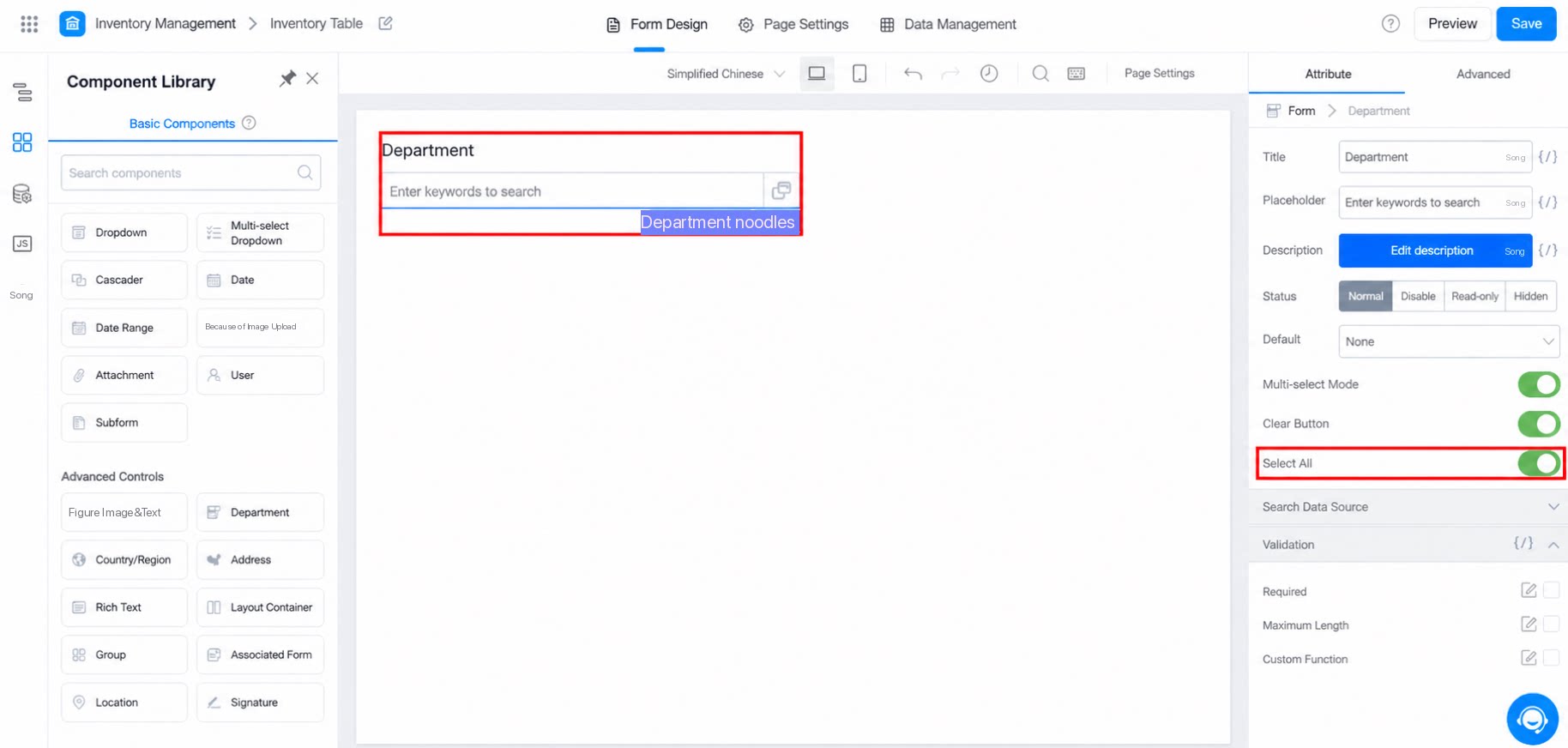

When Select all mode is on, a Select all toggle is added to the submit page, letting you select all departments in the current dropdown list, as shown below: Turn on Select all

​
2.3 Clear Button

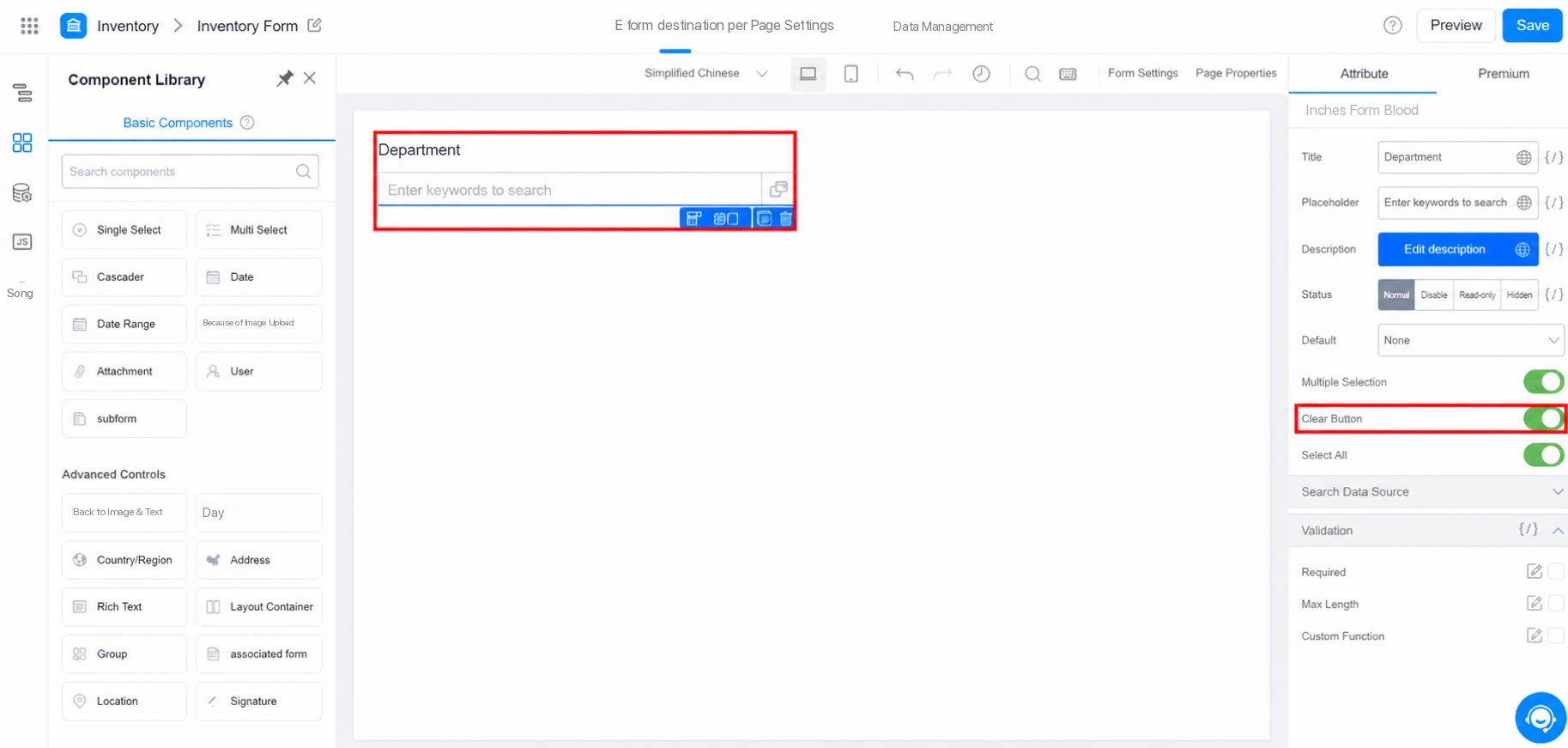

Allow clearing the entered content with one click via the x, as shown below: Allow one-click clear button

​

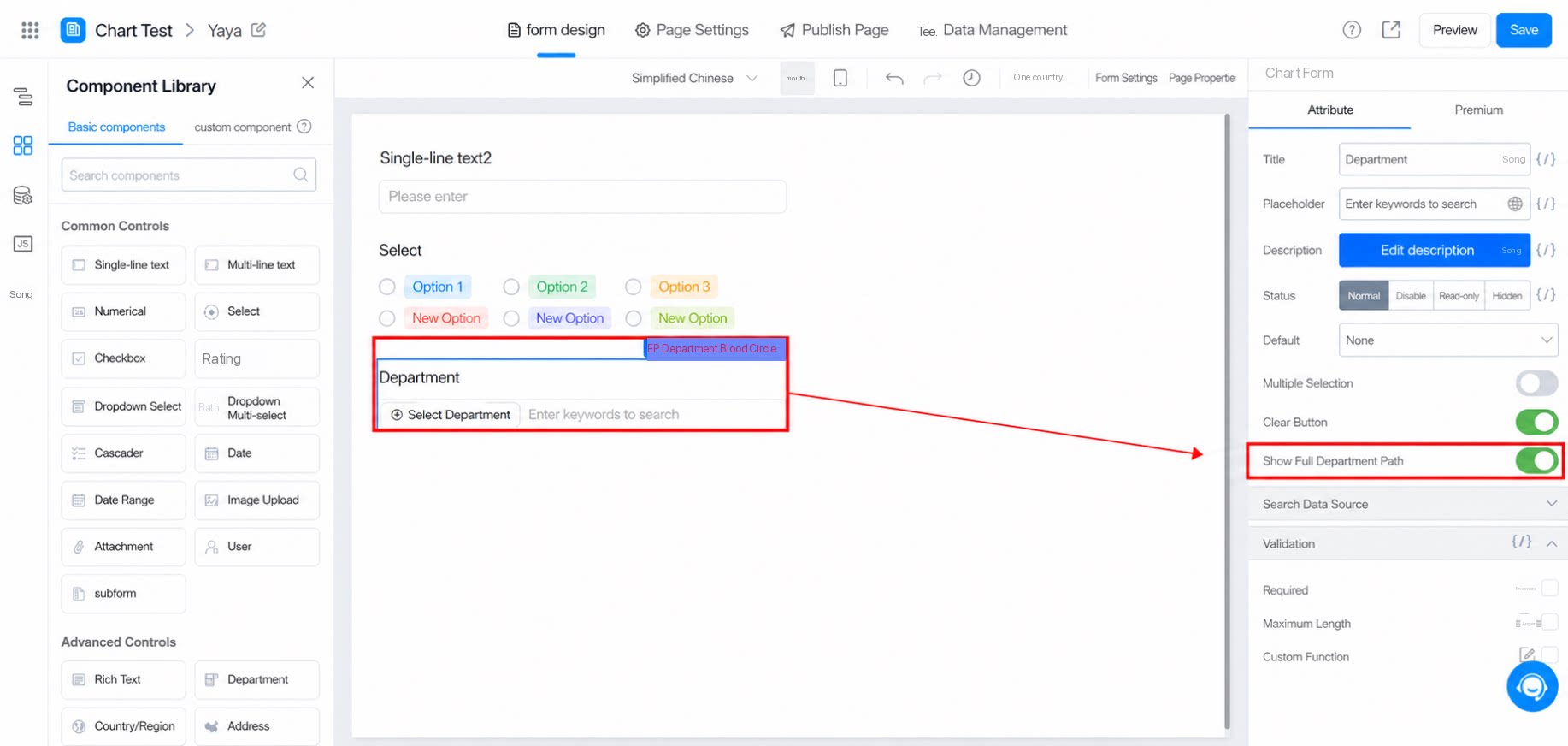

2.4 Show Full Department Path

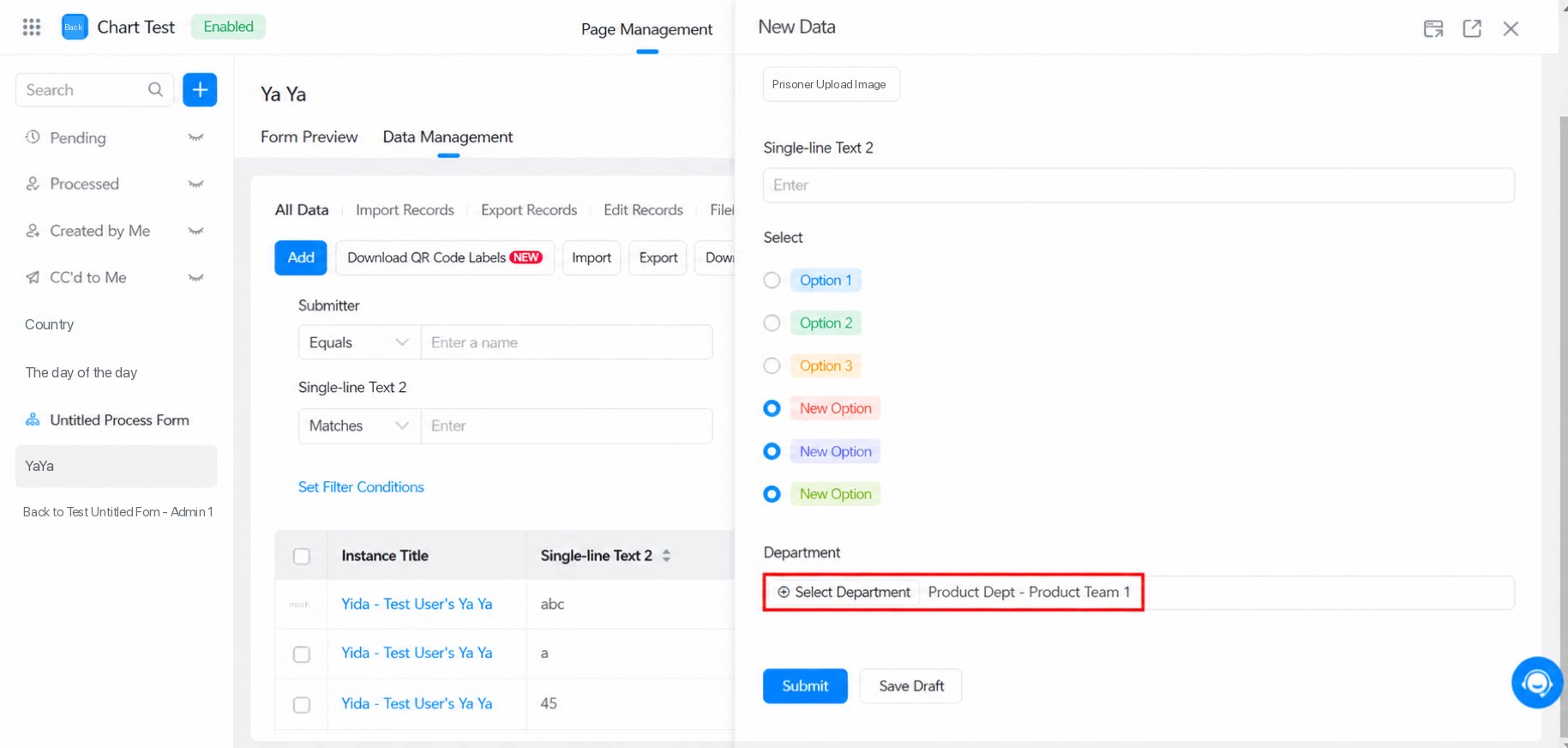

When Show full department path is on, the department component’s value displays the full department path from parent to child, left to right. For example, if Product Department is the parent of Product Department 1, selecting Product Department 1 displays: Product Department - Product Department 1. Note: The top-level department is shown by default. Show full department path

​
2.5 Search Data Source

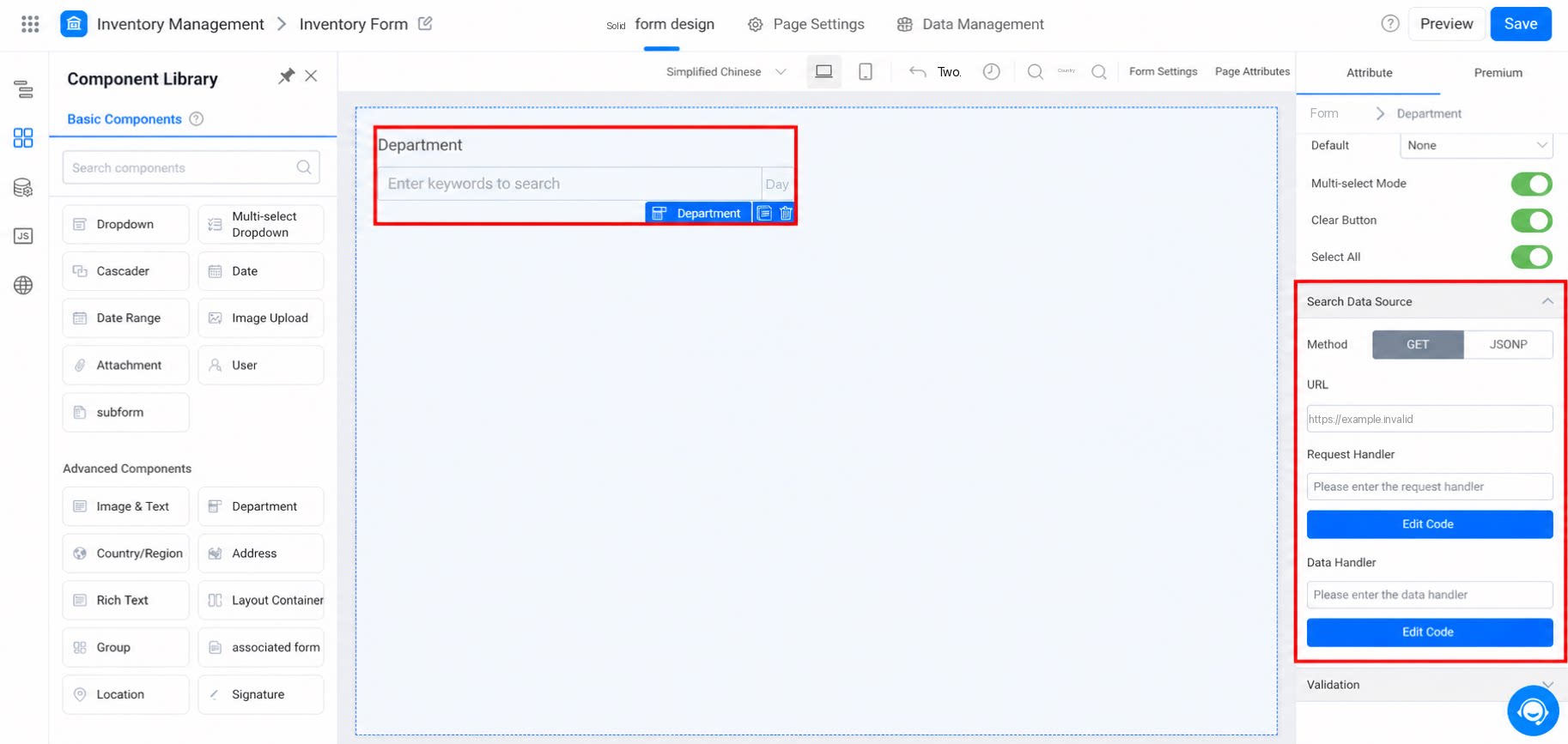

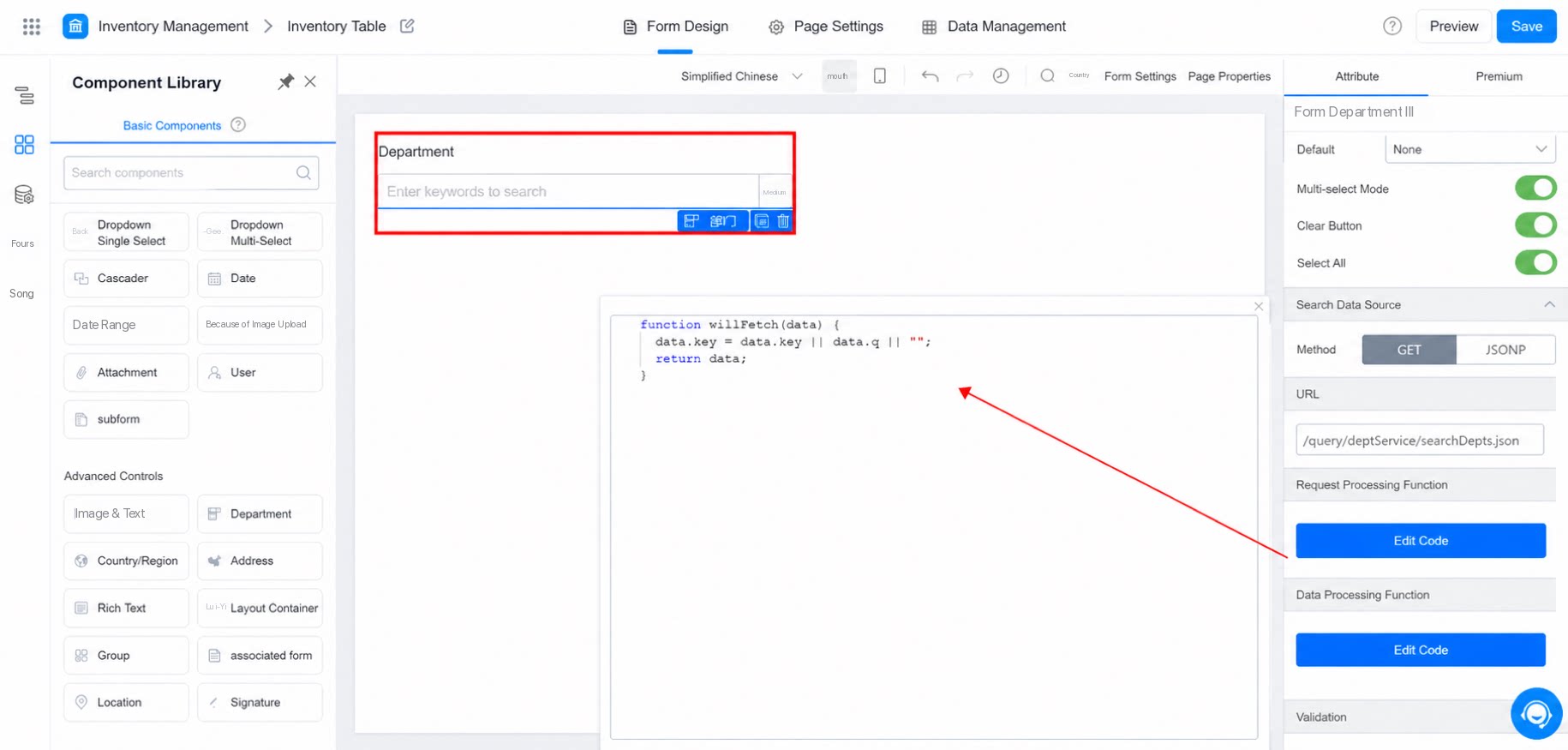

If your organization has its own organization structure data source, you can replace the request URL here with your data source’s HTTP URL, as shown below: You can also write a request handler function tailored to your HTTP URL’s requirements. The function’s input parameter data is the user’s search input value, and its return value is used as the query parameter for the request, as shown below: Request handler function If your HTTP URL’s returned data structure differs from that of YiDA’s department query HTTP URL, modify the data handler function accordingly. Ensure the function’s return value follows the format below — an array of objects, as shown:

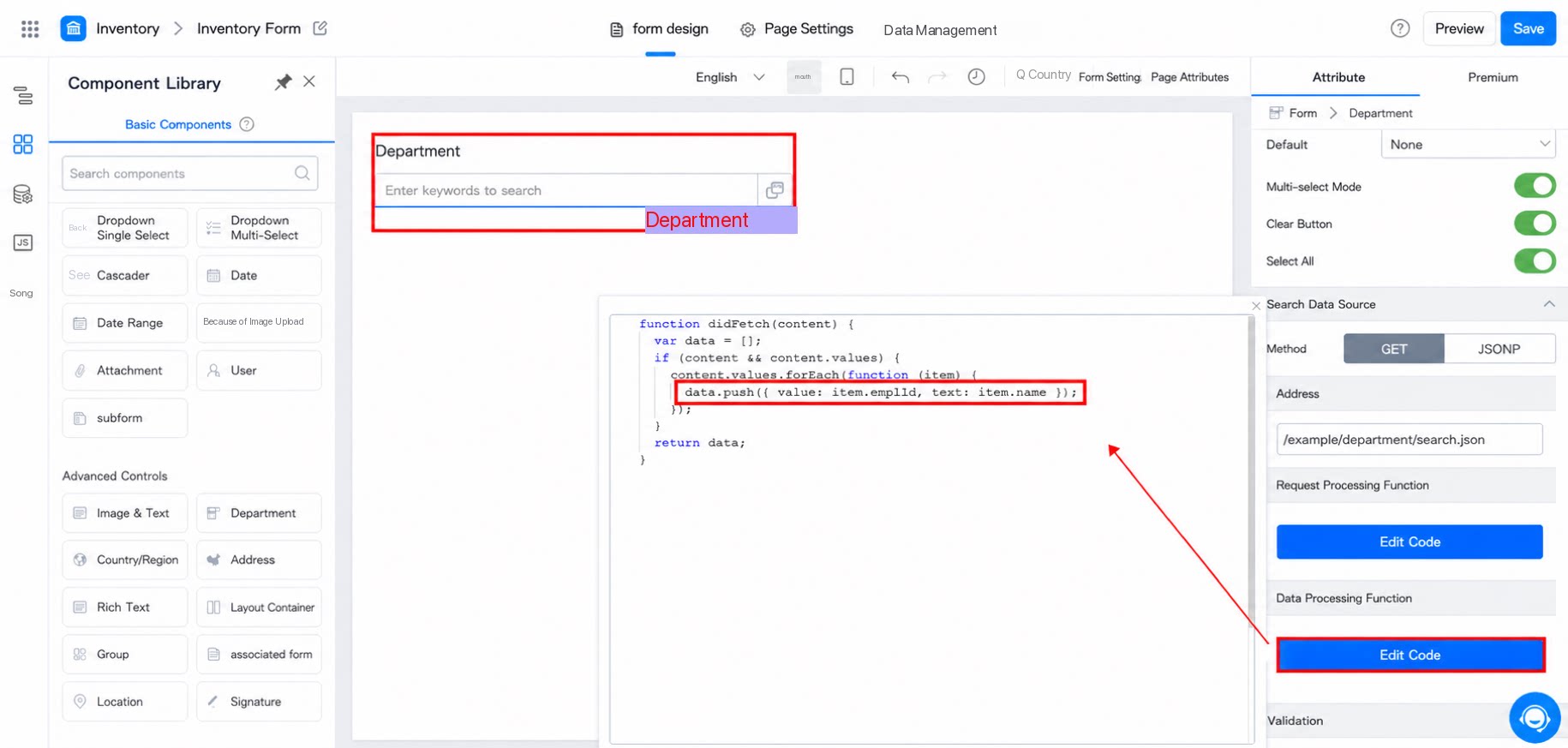

Data handler function

​
3. Premium

​
3.1 Action Settings

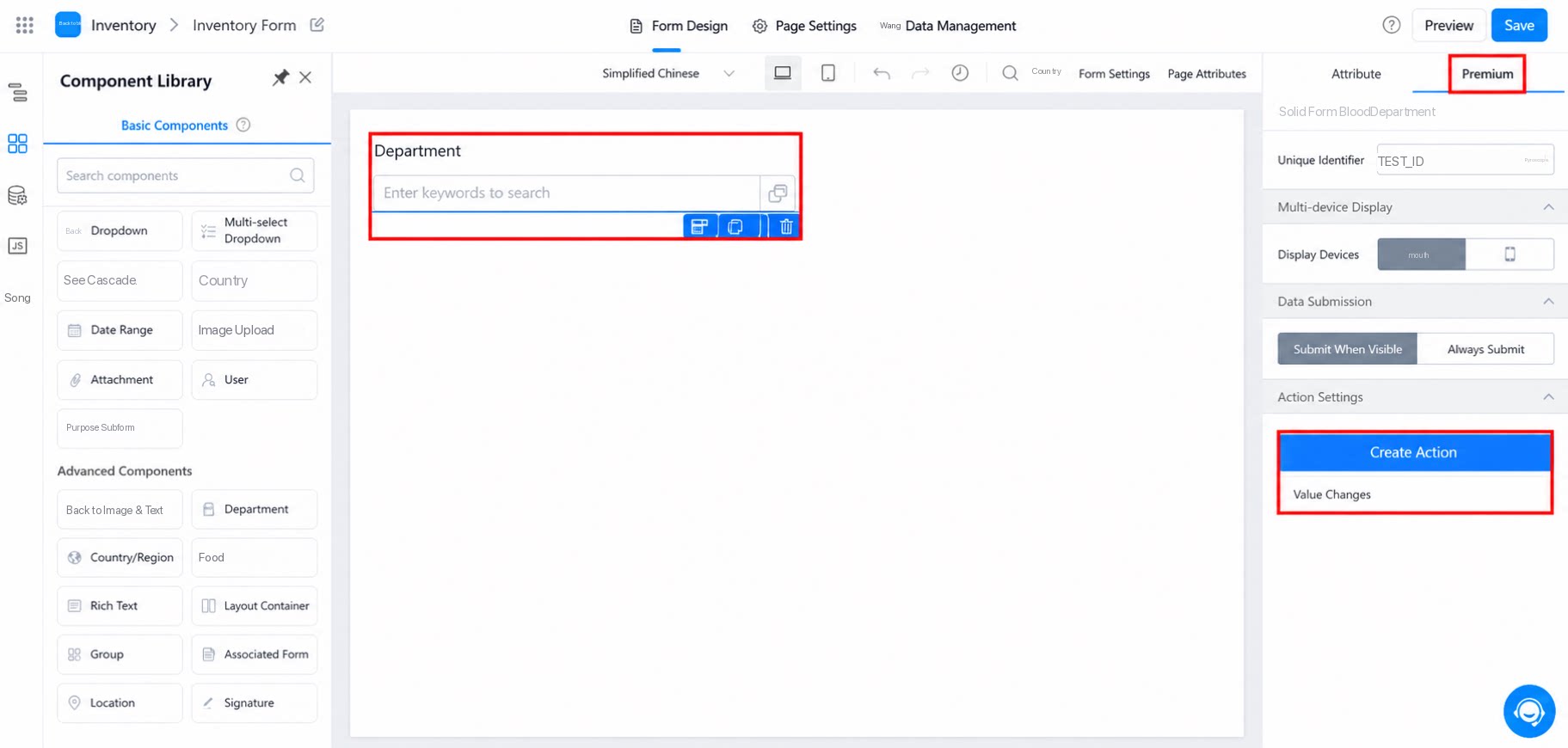

Configure JS code when you need to define this component’s action, as shown below: action Settings - Value change

​
4. FAQ

​
4.1 How to Retrieve the Current Signed-In User’s Department

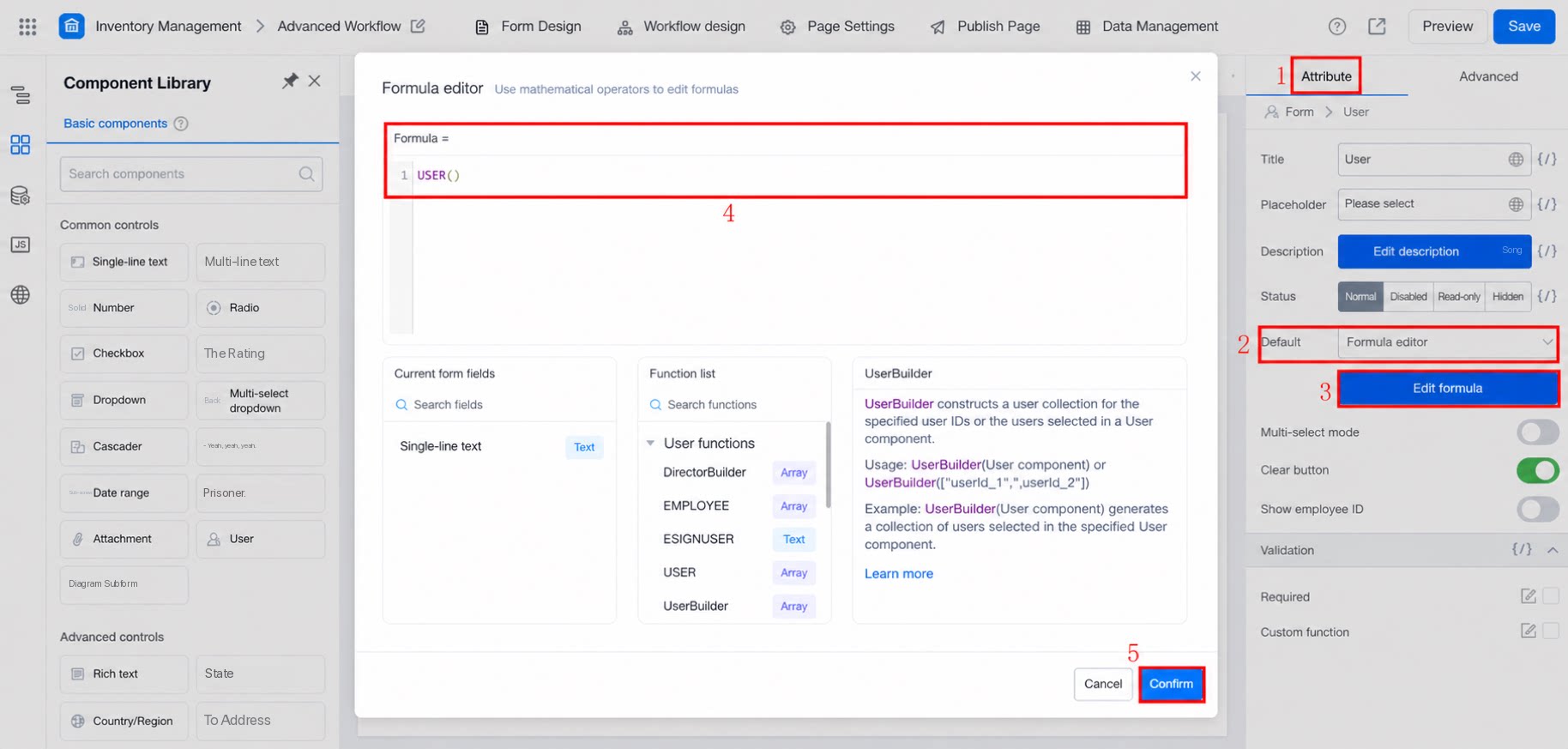

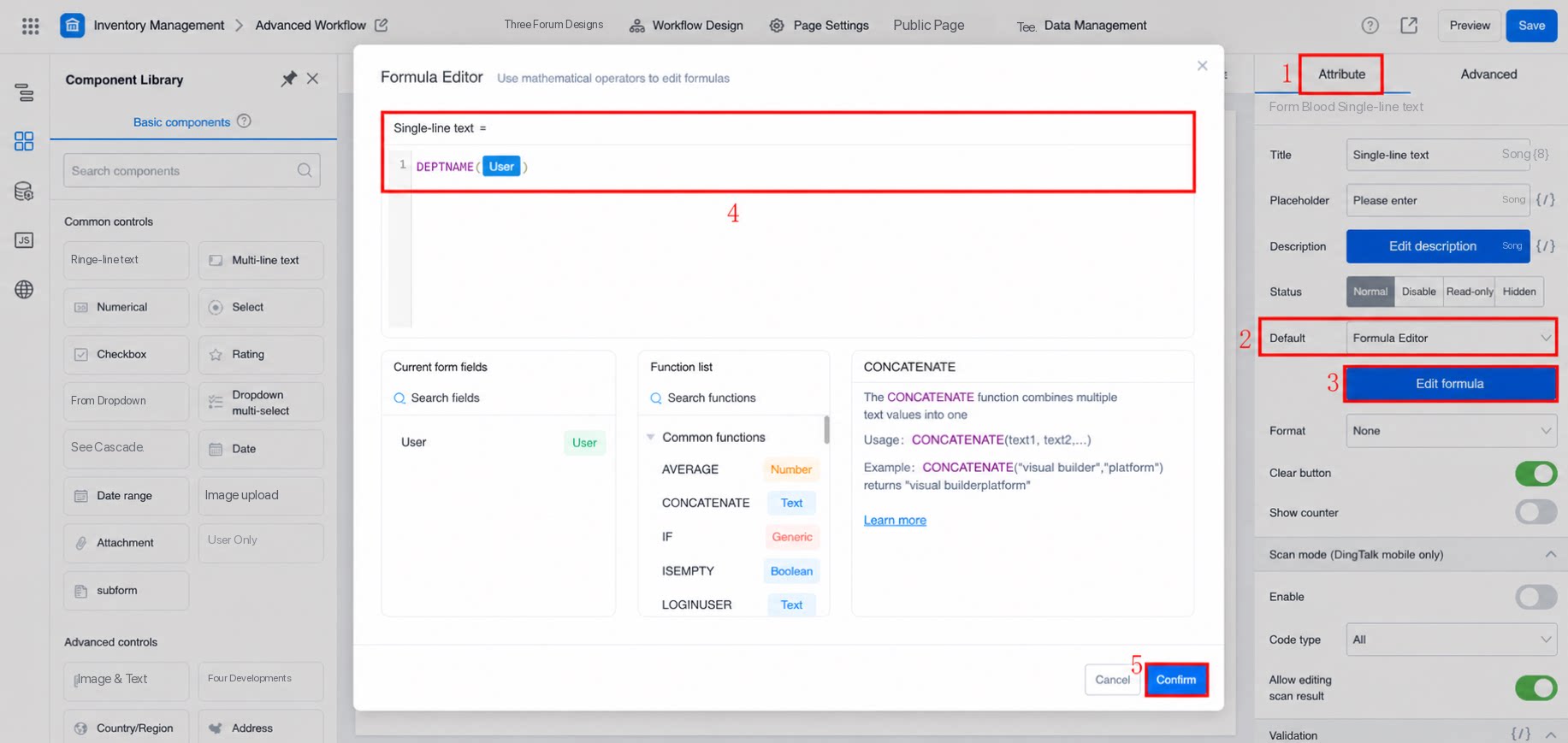

This requires a formula. The recommended approach is to use a Single-line text and a member component, switching the default to formula editing. Set the member component’s formula to USER(), and set the Single-line text’s formula to DEPTNAME(member component).

​
4.2 Cannot Search for Other Departments in the Organization Within the Department Component

By default, the department component only shows the department the current signed-in user belongs to. To fill in other department information, enter the department name to search, as shown below:

​
4.3 How to Retrieve the Manager of the Current Department via the Department Component

Direct retrieval is not currently supported. However, you can configure a department & manager association table in YiDA, then have the workflow form automatically associate the corresponding department’s manager information after the department is selected, and bind that manager information variable at the approval node.
